Vertical Accumulator

Request a Quote

View All: http://jl-rubbermachine.com/1-1-3-vertical-accumulator.html

Ideal for handling metal carrier of vulcanized rubber seal

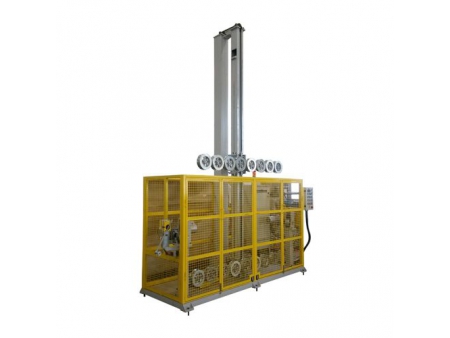

JXC-X-I

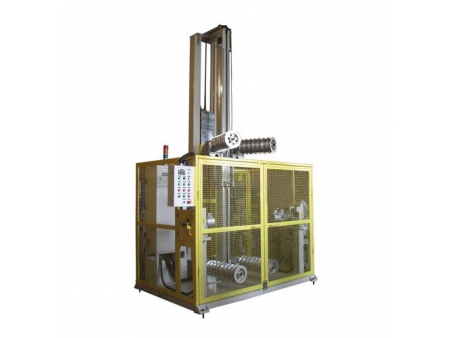

JXC-X-II

Vertical accumulator is used for storing metal carrier in the co-extrusion lines to ensure uninterrupted production during rubber seal carrier welding. The equipment can be selected with different storage capacity according to the customer's production speed requirements. When the production line speed is below 20m/min, the equipment with "–" type pulley arrangement can be chosen, and when the production line speed is between 20-35m/min, the equipment with "V" type pulley arrangement can be selected.

Features
Inlet and outlet are equipped with pullers, which allow the steel strip to operate without deformation or damage with a tension of less than 4kg.

Specifications

Model	JXC-X-I	JXC-X-II
Dimensions	L3300mm×W1200mm×H4300mm	L3400mm×W1500mm×H4500mm
Accumulation Capacity	60-80m ("–" type pulley arrangement)	80-150m ("V" type pulley arrangement)
Max. Width of Metal Carrier	60mm
Line Speed	4-25m/min (variable frequency speed regulation)	4-35m/min (variable frequency speed regulation)
