Hot Melt Adhesive Coating Machine, JYT-B
Request a Quote

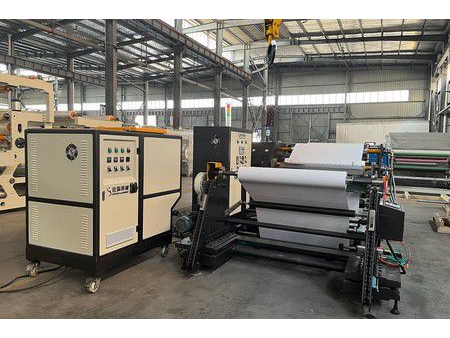

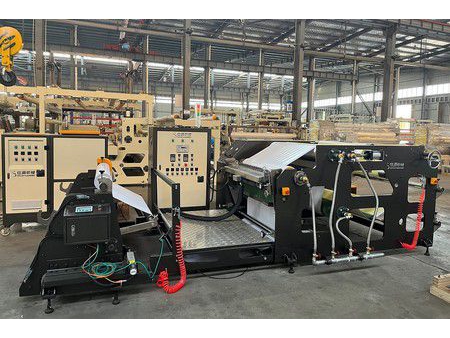

Hot melt coating and laminating machine
The JYT-B hot melt adhesive coater is suitable for the production of double-sided adhesive tapes, cloth tapes, double-sided foam tapes, cleaning tapes, kraft paper tapes, masking tapes, aluminum foil tapes, fiber tapes, adhesive tapes for footwear and medical auxiliary materials, low-temperature hot melt films. With fiber-reinforced adhesive spraying system, the coater is able for the combination of PE film and non-woven fabric, making it suitable for the production of filter materials, medical materials etc.

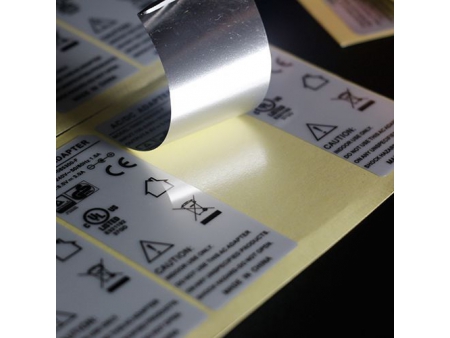

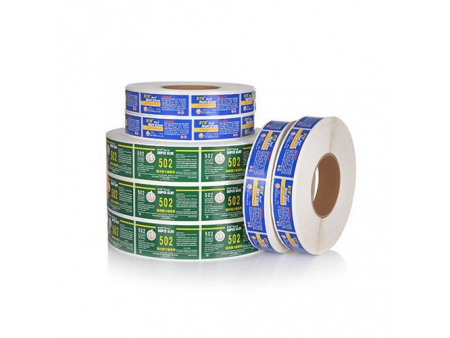

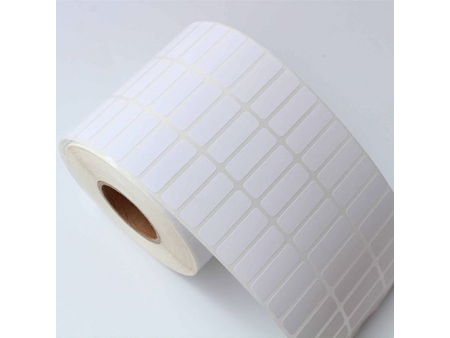

- Self-adhesive label
- Cloth tape
- Anti-counterfeit label
- Holographic label

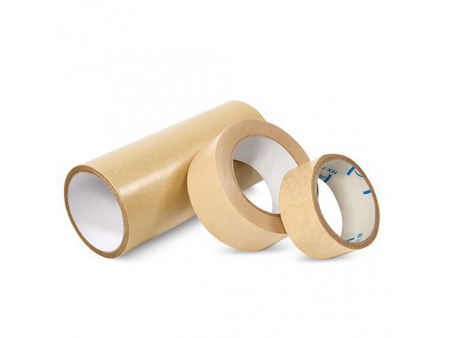

- Kraft paper tape

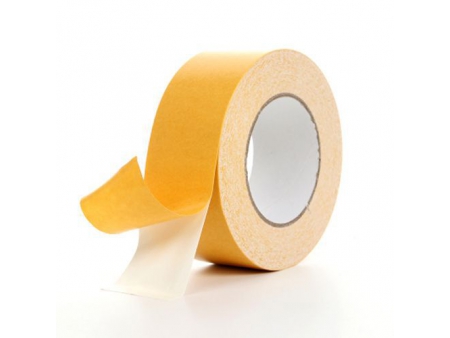

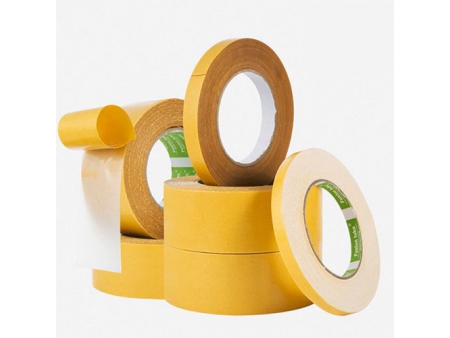

- Double-sided adhesive tape
Specifications
| Model | JYT-B |
| Coating Width | 400-2000mm |
| Coating Weight | 10-200g/m² |
| Coating Speed | 50m/min |
| Unwind Diameter | 1000mm |
| Rewind Diameter | 700mm |
| Web Guide System | 1 set |
| Length | 5000mm |
| Height | 1400mm |
| Power | 38-60kW |
| Power Supply | 380v±15% 50Hz |
Parameters can be adjusted according to specific customer requirements.
Features
- Coating speed and adhesive supply speed can be manually adjusted or automatically synchronized.
- Intelligent PID temperature control system, ensuring an error within 1℃.
- All active rollers and passive guide wheels have been corrected by high-precision dynamic balancing equipment. With well-arranged assembling process, the machine runs smoothly with low noise, preventing composite materials from wrinkling and thus ensuring excellent production quality.
- High-precision alloy applicator head and gear metering pump ensure high coating quality.
- With the fiber-reinforced adhesive spraying system, combining of PE film and non-woven fabric can be performed, which allows for the production of specialty filter materials, shoe materials, medical materials and other specialty materials. Fiber-reinforced adhesive spray features relatively low amount, good uniformity and fineness, which makes the coating breathable. With optional dedicated PUR hot melt adhesive machine, the machine is able for handling premium materials.
Main Components
- PLC control system
- Winding mechanism
- Winding mechanism
- Gluing system
Frequently Asked Questions
You need to consider several key factors, such as:
- Coating method: dot coating, spray coating, roller coating, or blade coating.
- Evaluate your production needs: required speed, coating precision, and thickness range.
- Match the machine with adhesive type: EVA, PO, and PUR glues each require different temperature control systems.
- Consider future integration: If you need to connect the machine to an existing production line, verify that it supports communication protocols, for example RS-485.
Yes, both coating width and thickness can be customized to your specific requirements. Width is adjustable through interchangeable slot-die heads or blades, with a typical range of 10 mm to 1000 mm. Thickness control is achieved by precision metering pumps, adjustable blade gaps, or roller pressure, allowing for fine-tuning of the coating within a range of approximately 0.01 mm to 2 mm.
If the machine fails to dispense glue after startup, we recommend re-checking and ensuring that the glue tank, hoses, and nozzles have reached the correct operating temperature. Then, clean the filter and nozzles of the glue track for clogs. Also, confirm that the metering pump is functioning properly and the solenoid valves are in an open position. Lastly, check the glue level and refill if it’s below the minimum threshold.
Perform monthly inspections of heaters, sensors, and pump seals. Always operate the machine within recommended limits, and perform a thorough cleanup before shutdown to prevent residue buildup. Using genuine spare parts, such as filters and sealing rings, can help prevent wear. Finally, keep the operating area dry and clean to extend the service life.
Yes, our equipment is designed with integration in mind, allowing the machine dimensions to be customized to match your production line. Technically, our machine uses the standard RS232/458 and Ethernet interfaces, supporting Modbus communication protocols. Additionally, it receives start/stop and speed signals from PLCs to enable synchronized, automated operation.
