Rooftop RV Air Conditioner (AC 110V/220V)

Request a Quote

View All: http://rv-airconditioner.com/1-1-rooftop-rv-air-conditioner.html

RV 3600

Ideal for caravans, motorhomes and recreational vehicles up to 8m in length

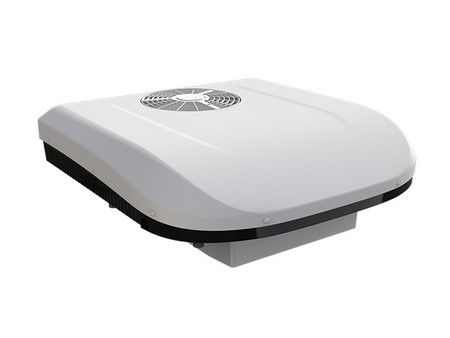

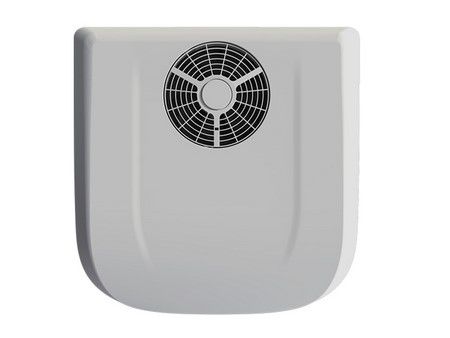

Our rooftop RV air conditioner model RV 3600, stands out in the market thanks to its ability to operate on both 110v and 220v, delivering a powerful cooling capacity of 3600W. This air conditioner unit is equipped with the latest variable speed control inverter compressor and heat pump technology. These features ensure the AC unit operates quietly and efficiently. What's more, this rooftop air conditioner has a smaller internal cutout size of 360mm×360mm, making it an ideal fit for vehicles over 8 meters in length. Its compact size and ease of installation make it a top choice for enhancing the comfort of your RV life.

Can be used as

Specifications

Model	RV 3600
Input Voltage	110V/220V
Input Power	500W-1200W
Cooling Capacity	125000 BTU (3600W)
Frequency	50/60Hz
Function	Cooling (heating function can be added as per customer request)
Refrigeration Oil	POE68
Refrigerant	R134A/R410
Shell Material	UV Resistant ABS
Net Weight	33 kg
Gross Weight	41 kg

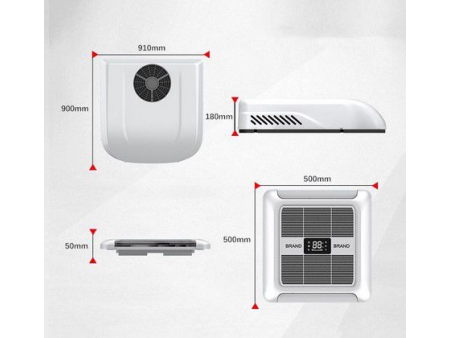

Dimensions (Product)	900×910×310mm (35.4×35.8×12.2inch)
Dimensions (Packaging)	975×985×400mm (38×38.5×15.7inch)

Features

AC 110V/220V with a 3600W cooling capacity, ideal for installing in 8-meter RVs, campers, and caravans.
Made with UV-resistant materials, offering high-grade sun and waterproof protection up to IPX8 standards.
Incorporates inverter technology to adjust speeds automatically based on operation needs, enhancing compressor efficiency, reducing energy consumption, and saving power.
Generates noise levels of ≤46DB, ensuring a quiet environment.

Applications

During hot summer days, when temperatures soar above 86 degrees Fahrenheit, comfort becomes a top priority for those traveling in RVs and campers. Traditional RV air conditioners often fall short, being power-intensive, outdated, or bulky, and less efficient. That’s where our rooftop air conditioners come into play. They're popular for their compact size, which saves valuable space, their energy efficiency, and their modern design. These features make our rooftop AC units an attractive choice for enhancing the comfort of your RV or camper.

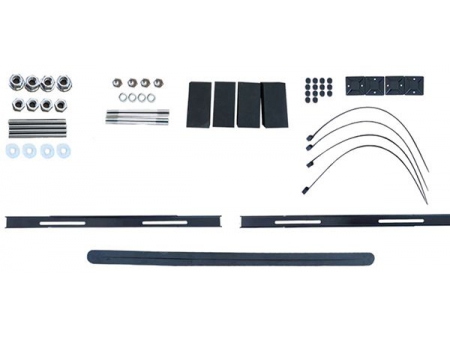

Accessories

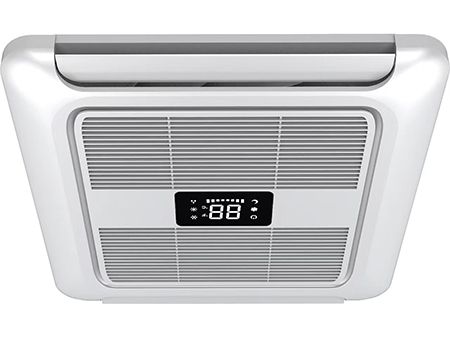

RV interior panel (1 piece)
Installation tie rod (1 piece)
Power cable (1 piece)
Sealing sponge (1 piece)
Rolled strip (several pieces)
Installation screws (several pieces)
Shock absorbing support belt (4 pieces)

Our skilled customer service team is here to assist. Reach out for detailed insights on our range of air conditioners and heaters.

Typically, our RV air conditioners are highly resistant to water and dust, so they don't require additional covers. However, in extreme weather conditions, considering a protective cover might be a good idea.

If your RV is connected to a residential or RV park power supply, running your air conditioner constantly shouldn't be an issue. However, if you're using a mobile power source, like vehicle power systems or solar power, it's advisable not to run it for extended periods.

Maintaining your RV air conditioner in good condition is crucial for a longer lifespan and reduced energy loss. This means it should be cleaned and serviced approximately every six months.

Our rooftop air conditioner is primarily used on RVs, Vans, and caravans, offering space savings and aesthetic enhancement for these vehicle types.

Yes, with our 7-person R&D team, we can customize rooftop AC units for you. Contact our marketing department for more information.

Customization options include product color, shape, adding your logo to the product and packaging, and selecting the cooling capacity.

We provide technical guidance documents and installation videos to help customers install our products more efficiently. Our technical team can also offer one-on-one video conferences to assist with installation.

Currently, this product only has a cooling function. It's more affordable and energy-efficient compared to models that offer both heating and cooling. However, if you need a heating function, we offer two solutions: adding a heating feature to this air conditioner or providing a low-cost heating product like a gasoline or diesel parking heater.

For vehicles up to 5 meters long, a 2 to 2.5 kW air conditioning system should suffice. For vehicles over 5 meters, consider a system over 3 kW. Our model is particularly suitable for vehicles up to 8 meters long, such as RVs, campers, and caravans.

Caravan air conditioning units mainly come in three types: rooftop, built-in, and underbunk duct air systems. Our model is a rooftop air conditioning system, which is a very popular type of portable air conditioner.
