Tube Ice Machine for Industrial Application Tube Ice Machine (1T / 2T / 3T / 5T / 10T / 15T / 20T / 30T/ 45T/ 60T)
Icesource’s tube ice machine is constructed to produce hollow cylindrical ice with production capacities from 1ton to 60tons. The external diameters of cylindrical tube ice produced are available in φ16mm, φ22mm, φ28mm, φ35mm, φ38mm, etc., while hole diameters are adjustable according to ice making time, commonly ranging from φ5mm to φ10mm. The length of tube ice comes in range of 30-60mm. This tube ice machine ensures that the cylindrical tube ice is transparent, hard, slow melting, long storage period and good air permeability, which can be widely used for daily ice consumption, fresh vegetable preservation, aquatic products processing, etc.

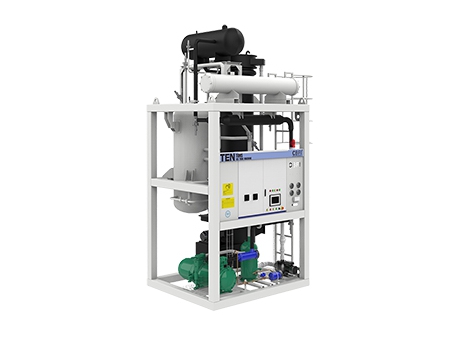

TV10 Tube Ice Machine
- Daily Output (T/24h): 1
- Compressor Power (kW): 4.34
- Fan Power for Cooling Tower (kW): 0.25
- Cooling Pump Power (kW): 0.75
- Unit Size (L*W*H mm) (Integrated Type): 1330*1050*1698
TV20 Tube Ice Machine
- Daily Output (T/24h): 2
- Compressor Power (kW): 7.88
- Fan Power for cooling Tower (kW): 0.25
- Cooling Pump Power (kW): 1.1
- Unit Size (L*W*H mm) (Integrated Type): 1400*1100*1787
TV30 Tube Ice Machine
- Daily Output (T/24h): 3
- Compressor Power (kW): 10.58
- Fan Power for Cooling Tower (kW): 0.25
- Cooling Pump Power (kW): 1.1
- Unit Size (L*W*H mm) (Integrated Type): 1500*1350*2077
TV50 Tube Ice Machine
- Daily Output (T/24h): 5
- Compressor Power (kW): 19.4
- Fan Power for Cooling Tower (kW): 0.55
- Cooling Pump Power (kW): 1.5
- Unit Size (L*W*H mm) (Integrated Type): 1700*1500*2160

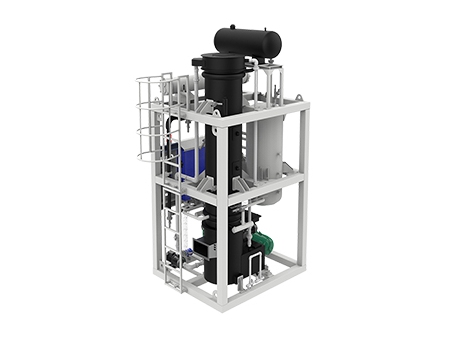

TV100 Tube Ice Machine
- Daily Output (T/24h): 10
- Compressor Power (kW): 29.2
- Fan Power for cooling Tower (kW): 1.5
- Cooling Pump Power (kW): 4
- Unit Size (L*W*H mm) (Split Type): 2160*1630*1630 (Main Host), 1300*1300*3421 (Brine Tank)
TV100 Tube Ice Machine
- Daily Output (T/24h): 10
- Compressor Power (kW): 33.1
- Fan Power for Cooling Tower (kW): 1.5
- Cooling Pump Power (kW): 4
- Unit Size (L*W*H mm) (Split Type): 2610*1830*1855 (Main Host), 1300*1300*3421 (Brine Tank)
TV150 Tube Ice Machine
- Daily Output (T/24h): 15
- Compressor Power (kW): 49
- Fan Power for Cooling Tower (kW): 1.5
- Cooling Pump Power (kW): 4
- Unit Size (L*W*H mm) (Split Type): 2860*2000*1910 (Main Host), 1530*1230*4555 (Brine Tank)
TV200 Tube Ice Machine
- Daily Output (T/24h): 20
- Compressor Power (kW): 58.4
- Fan Power for Cooling Tower (kW): 1.5
- Cooling Pump Power (kW): 5.5
- Unit Size (L*W*H mm) (Split Type): 2960*2200*1910 (Main Host), 1500*1250*4610 (Brine Tank)
TV300 Tube Ice Machine
- Daily Output (T/24h): 30
- Compressor Power (kW): 87.6
- Fan Power for Cooling Tower (kW): 2.2
- Cooling Pump Power (kW): 5.5
- Unit Size (L*W*H mm) (Split Type): 3260*2200*2100 (Main Host), 1800*1550*5566 (Brine Tank)
TV450 Tube Ice Machine
- Daily Output (T/24h): 45
TV600 Tube Ice Machine
- Daily Output (T/24h): 60
| Model | Daily Output | Compressor Power | Fan Power for Cooling Tower | Cooling Pump Power | Unit Size (Integrated Type) | Unit N.W. | |
| Ton/24 h | L*W*H (mm) | kg | |||||
| TV 10 | 1 | 4.1 kw | 0.25 kw | 1.1 kw | 1100*900*1780 | 900 | |
| TV 20 | 2 | 7.44 kw | 0.25 kw | 1.5 kw | 1250*1000*1950 | 1200 | |
| TV 30 | 3 | 10 kw | 0.55 kw | 1.5 kw | 1300*1100*2200 | 1500 | |
| TV 50 | 5 | 19.9 kw | 0.55 kw | 2.2 kw | 1600*1400*2250 | 1800 | |
| TV 100 | 10 | 27.9 kw | 1.5 kw | 4 kw | 1900*1600*1850 (Main Host) | 1200*1200*3390 (Brine Tank) | 3500 |
| TV 100 | 10 | 39.8 kw | 1.5 kw | 4 kw | 2400*1700*2000 (Main Host) | 1200*1200*3390 (Brine Tank) | 3700 |
| TV 150 | 15 | 46.4 kw | 1.5 kw | 5 kw | 2700*2000*2200 (Main Host) | 1500*1200*4250 (Brine Tank) | 4250 |
| TV 200 | 20 | 55.7 kw | 2.2 kw | 7.5 kw | 2800*2200*2500 (Main Host) | 1500*1200*4700 (Brine Tank) | 6500 |
| TV 300 | 30 | 83.6 kw | 2.2 kw | 7.5 kw | 3100*2200*2500 (Main Host) | 1800*1500*5700 (Brine Tank) | 7200 |
| TV 400 | 40 | 111.4 kw | 2.2 kw | 11 kw | 3900*2250*2500 (Main Host) | 2000*1500*6800 (Brine Tank) | 8300 |
| TV 500 | 50 | 139.3 kw | 3.75 kw | 15 kw | 4500*2250*2500 (Main Host) | 2200*1800*7200 (Brine Tank) | 9500 |
- Compressor Brand: Bitzer / Frascold; Refrigerant: R22/R404A; Cooling Method: Water Cooling / Air Cooling.
- Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
- Operating Conditions: T(water supply) : 21℃, T(ambient) : 25℃, T(condensing) : 40℃, T(evaporating): -10℃.
- (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
- (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there is any technical change.)
-
3D simulation assembly, easy to transport, installation and maintenance;
-
Stainless steel evaporator features foamed-in-place polyurethane insulation for excellent thermal insulation, better energy saving and superior look;
-
All parts contacting the ice are made of food grade 304 stainless steel, ensuring the hygiene and safety of ice;
-
PLC control system provides fully automatic production process, eliminating the need for manual operation;
-
Adopting automatic laser welding machine to ensure no leakage of weld seams, low failure rate;
-
The tube ice machine is CE compliant, high reliability;
-
-
-
Specially designed water distributing system ensures high ice quality, uniform thickness, good transparency and purity;
-
-
-
Quick ice harvesting, small impact, high efficiency and safety;
-
Configurable with stainless steel ice storage bin with screw conveyor, manual or automatic ice packaging system;
