Drill Bits
Materials
  • High-carbon steel
  • High speed steel
  • Carbide
Application

Suitable for drilling precision and artistic holes (thorough holes, blind holes).

Specifications
HSS Drill
D (mm) L (mm)
Φ5 57
Φ5 70
Φ6 57
Φ6 70
Φ7 57
Φ7 70
Φ10 57
Φ10 70
TCT Precision Dowel Drills
D (mm) L1 mm L2mm L3mm
4-10 57.5 27 10*27
4-12 70 35 10*30
TCT Precision Through Drills
D (mm) L1 mm L2mm L3mm
5 57.5 25 10*24
6 57.5 25 10*24
8 57.5 25 10*24
10 57.5 25 10*24
5 70 35 10*24
6 70 35 10*24
8 70 35 10*24
10 70 35 10*24
Router Bits
Materials
  • Carbide
Application

Suitable for drilling precision and artistic holes.

Specifications

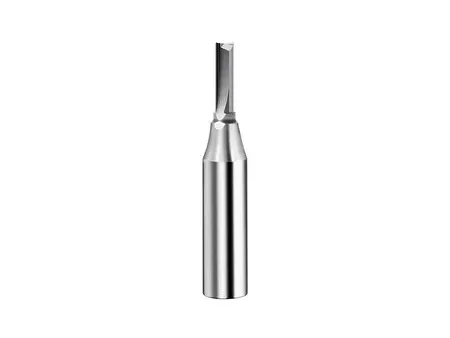

Straight Bits
A B C D
Inch mm Inch mm Inch mm Inch mm
1/4 6.35 3/4 19 1/4 6.35 1-1/4 32
5/16 7.9 3/4 19 1/4 6.35 1-1/4 32
3/8 9.5 3/4 19 1/4 6.35 1-1/4 32
1/2 12.7 1 25.4 1/4 6.35 1-1/4 32
5/8 15.9 1 25.4 1/4 6.35 1-1/4 32
1 25.4 3/4 19 1/4 6.35 1-1/4 32
Laminate Flush Trimming Bits
A B C D
Inch mm Inch mm Inch mm Inch mm
1/4 6.35 3/4 19 1/4 6.35 1-1/4 32
3/8 9.5 1/2 12.7 1/4 6.35 1-1/4 32
3/8 9.5 1 25.4 1/4 6.35 1-1/4 32
1/2 12.7 1 25.4 1/4 6.35 1-1/4 32
1/2 12.7 1 25.4 1/2 12.7 1-1/2 38
1/2 12.7 2 50.8 1/2 12.7 1-1/2 38
