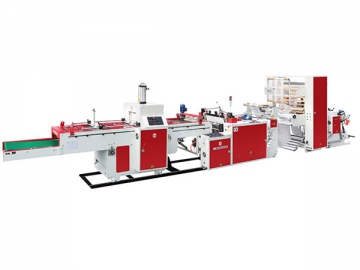

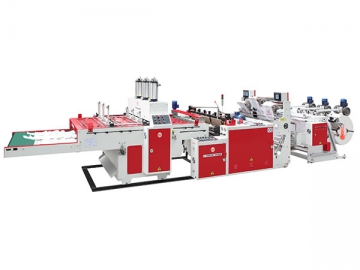

Fully Automatic High Speed T-Shirt Bag Making Machine
  • CW-300V3 High speed t-shirt bag making machine
  • CW-400V2 High speed t-shirt bag making machine
  • CW-500V High speed t-shirt bag making machine

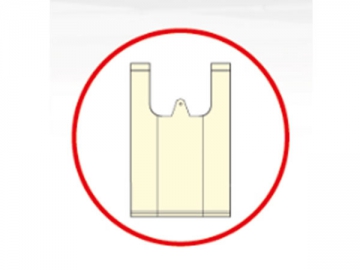

  • 400V2 300V3 500V T-shirt bag

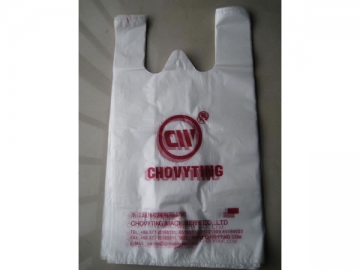

  • Bag sample

Hot sealing/cutting type (for strong bottom welding)
Material: HDPE, LDPE, Recycled material, CaCO3 added (to save material cost)
Tube film with or without gusset on both sides can be processed by this t-shirt bag making machine.
Application: printed or non- printed film
With one photocell for one line printed t-shirt bag

Features

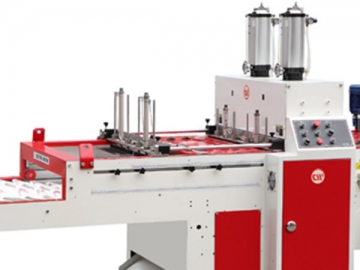

  • With turnover sealing knife system, easy to clean

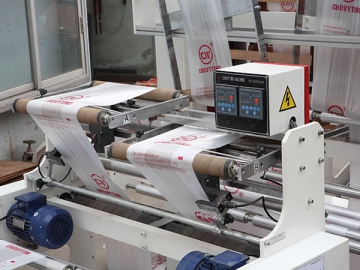

  • With EPC control system for each lane

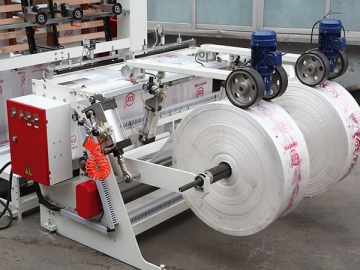

  • With automatic tension control unwinder
  • With inline punching units

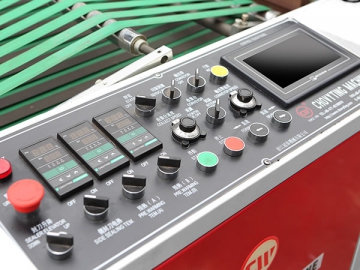

  • With PLC control and touch screen, servo motor drive
Options
  • Big jumbo roll hot slitting device
  • Gusseting tower
Technical parameter

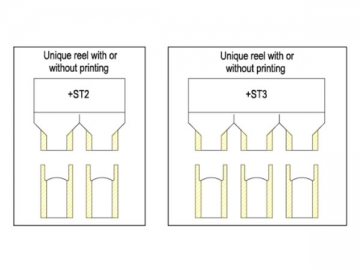

Double Lanes 3 Lanes Single Lane
Model CW-300V2 CW-400V2 CW-300V3 500V
Length of bag making 370-700MM 370-700MM 370-700MM
370-700MM
Width of bag making 300mm/each lane x 2lanes 400mm/each lane x 2lanes 300MM 500MM
Speed of bag making 250PCS/MIN x 2 lanes 220PCS/MIN 220PCS/MIN
Line speed 125M/MIN 110M/MIN 100M/MIN
Photocell 2pcs (one for each lane) 1pc 1pc
Servo motor 2pcs (one for each lane) 1pc 1pc
Total power 17.5KW 18.5KW 19KW 9.8KW
Weight of machine 2800KG 3100KG 3940KG 2940KG
Overall dimension 8000X1650X1800MM 8000X1850X1800MM 8000X2050X1800MM 8000X1350X1800MM
Air compressor 6HP 6HP 6HP 6HP
Options 1. Big jumbo roll unwinder hot slitting device (for 2 lanes) 1. Big jumbo roll unwinder hot slitting device (for 3 lanes) Gusseting tower
2. Gusseting tower for 2 lane 2. Gusseting tower for 3 lane
