1.8 Degree Size 110mm 2-Phase High Torque Hybrid Stepper Motor

Request a Quote

View All: http://motor-fulling.com

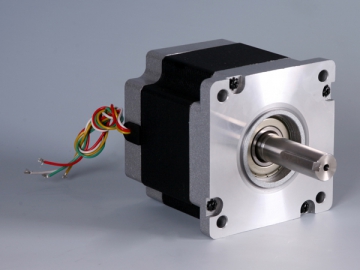

1.8º Size 110mm High Torque Hybrid Stepping Motor

Features
Large torque, high precision, large self-locking force

Application
Advertising industry: Engraving machine, laser machine
Home appliance industry: Coffee machine
Medical industry: Pharmaceutical ampoule printing machine, automatic strapping machine
Textile industry: Rotary screen printing press
Vehicle industry: Electric car

Item	Specifications
Step Angle	1.8^。
Step Angle Accuracy	±5% (full step, no load)
Resistance Accuracy	±10% (20℃)
Inductance Accuracy	±20% (1KHz)
Temperature Rise	80^。C Max.(rated current,2 phase on)
Ambient Temperature	-20^。C~ 50^。C
Insulation Resistance	100MΩMin. ,500VDC
Dielectric Strength	1200VAC , 1s , 5mA
Shaft Radial Play	0.02Max. (450 g-load)
Shaft Axial Play	0.08Max. (450 g-load)
Max. radial force	220N (20mm from the flange)
Max. axial force	60N

Model No.	Current per Phase	Resistance per Phase	Inductance per Phase	Holding Torque	Number of Leads	Rotor Inertia	Weight	Detent Torque	Length
Single shaft	A	Ω	mH	N·m	#	g·cm²	kg	kg·cm	mm
FL110STH99-5504A	5.5	0.7	9.8	11.2	4	5500	5	3	99
FL110STH150-6504A	6.5	0.72	12.8	21	4	10900	8.4	5.9	150
FL110STH201-8004A	8	0.67	11	28	4	16200	11.7	7.5	201
