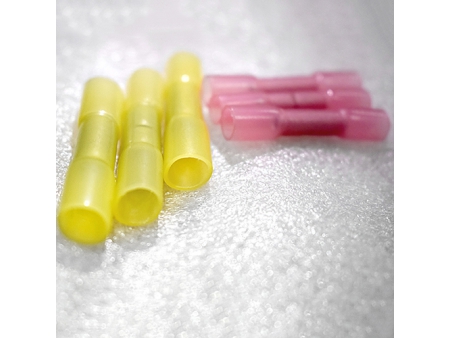

Heat Shrink Butt Connector
Request a Quote
Model: CYG-DS 406
Material
Exterior layer: irradiated cross-linked modified polyolefin
Inner layer: hot-melt adhesive
This heat shrink tubing is connected by tinned copper tubing.
Shrink ratio: 4:1
Applications
The heat shrink butt connector features an outstanding insulating, waterproof and moisture resistant performance, and is also able to protect against corrosion caused by salt spray, fluid, and moisture. This heat shrink butt connector can also protect wiring linkages, electronic machines and related accessories against water, and protect anywhere that requires a higher friction resistant and mechanical strength. The operating temperature of this heat shrink butt connector is -55℃~ 125℃.
| Part No. | Butt splice dimensions | Color | Conductor | Wire dimensions | ||
| A Min. | L Nom. | Insulation O.D. (Min.) | Insulation O.D. (Min.) | |||
| DS406-001 | 3.68 | 31.75 | Red | 22-18 | 3.56 | 1.40 |
| DS406-002 | 4.57 | 31.75 | Blue | 16-14 | 4.45 | 2.03 |
| DS406-003 | 6.35 | 38.10 | Yellow | 12-10 | 6.22 | 2.79 |
| Wire size AWG | mm2 | Part No. | Color |
| 22-18 | 0.38-0.95 | CYG-DS-1 | Red |
| 16-14 | 1.2-2.5 | CYG-DS-2 | Blue |
| Item | Specifications |
| Operating temperature | 55°C to 125°C |
| Shrink ratio | 4:1 |
| Cut-Through resistance: | 31 kg |
| Flammability | Non flame retardant |
| Wire pullout after crimping and recovery | red: 11.3 kg , blue: 22.7 kg, yellow: 27.2 kg |
| Solvent resistance: | isopropyl alcohol, trichloroethylene, gasoline, battery acid, diesel fuel, motor oil, antifreeze, brake fluid, 5% salt water |
| Dielectric strength: 2500 V (AC) | Insulation resistance: 1000 megohm at 100 V (DC) |
