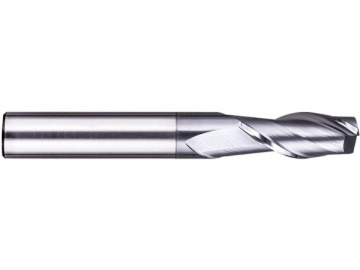

UC-R2 General Purpose Solid Carbide End Mill - Corner Radius - 2 Flutes
Request a Quote
Request a quote
Unit: mm
| Order Code | Cutting Diameter (D) | Length of Cut (Lc) | Corner Radius (r) | Overall Length (L) | Shank Diameter (d) | Type |
UC-R2-02002 | 2 | 6 | 0.2 | 50 | 4 | A |
UC-R2-03005 | 3 | 9 | 0.5 | 50 | 4 | A |
UC-R2-04005 | 4 | 11 | 0.5 | 50 | 4 | B |
UC-R2-05005 | 5 | 13 | 0.5 | 50 | 6 | A |
UC-R2-06005 | 6 | 6 | 0.5 | 50 | 6 | B |
UC-R2-06010 | 6 | 16 | 1 | 50 | 6 | B |
UC-R2-08005 | 8 | 20 | 0.5 | 60 | 8 | B |
UC-R2-08010 | 8 | 20 | 1 | 60 | 8 | B |
UC-R2-10005 | 10 | 25 | 0.5 | 75 | 10 | B |
UC-R2-10010 | 10 | 25 | 1 | 75 | 10 | B |
UC-R2-10020 | 10 | 25 | 2 | 75 | 10 | B |
Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
