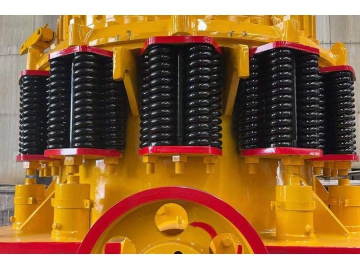

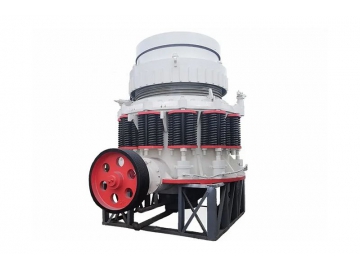

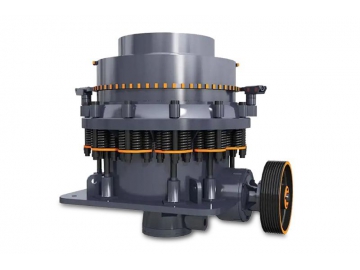

Spring Cone Crusher

Request a Quote

View All: http://crushing-grinding.com/1-2-5-spring-cone-crusher.html

Yate spring cone crusher is a highly qualified crushing machine mainly designed for secondary and tertiary crushing with medium and fine products. And the model of this spring cone crusher range from 900, 1200, 1750 to 2200 with different types of crusher cavities. In this way, we can offer you all that you need. Furthermore, simple structure and powerful crushing can achieve high crushing ratio and make it possible to be an extensive variety of applications in metallurgy, chemical industry, building materials, hydropower, road construction and other industries.

Features

Various models to apply;
Great durability;
Simple structure and compact design;
Powerful crushing;
Cost-efficient wearing parts;

Technical data

Model	Diameter (mm)	Feed opening (mm)	Maximum feed size (mm)	Discharge opening setting (mm)	Eccentric shaft rotation speed (r/min)	Capacity (t/h)	Power (kW)
PYY-900	900	135	115	15-50	333	50-90	55	10.8
PYZ-900		70	60	8-20		20-65		10.8
PYD-900		50	40	3-13		15-50		10.06
PYY-1200	1200	170	145	20-50	300	110-168	110	24.6
PYZ-1200		115	100	8-25		42-135		25
PYD-1200		60	50	3-15		18-105		25.3
PYY-1750	1750	250	215	25-60	245	280-480	155	50.3
PYZ-1750		215	185	10-30		175-320		50
PYD-1750		100	85	5-15		75-230		50.2
PYY-2200	2200	350	300	30-60	220	500-1000	280	84.8
PYZ-2200		275	230	10-30		200-580		85
PYD-2200		130	100	5-15		120-340		85.6

Model：PYY/Z/D
