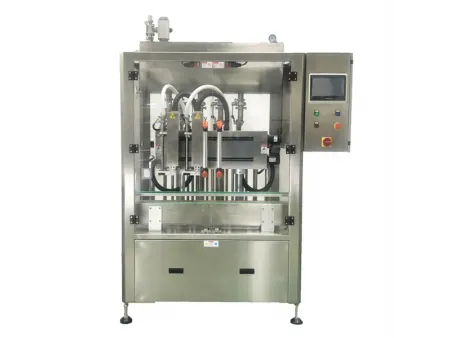

Automatic Filling and Capping Machine (for Watery Low Viscous Liquids), CZP-6/FX-1
Request a Quote
The automatic filling and capping machine combines filling and capping into one efficient machine. With precise and stable filling (only a ±1% error), the bottle filler and capper can process a series of operations such as counting bottles, quantitative filling, and capping through a pressing, clamping, capping and conveying system. PLC and touch screen control offers accurate and easy adjustment to fit a variety of projects, and the filling machine can process glass and plastic round bottles for food, beverage, pharmaceutical, and cosmetic packaging. Different sealing rings are available to meet different standards.
Main performance parameters:
- Diameter of bottle opening: ≥Φ18 mm
- Bottle diameter: Φ20-45mm Height: 50-150mm
- Cap diameter: Φ20-50mm Height: 15-50mm
- Diameter of bottle :Φ35mm-Φ60mm (diameter error ≤±1mm)
- Filling error: ±1% (test by water )
- Filling head: 6
- Production capacity: ≤2500 bottle/hour
- Power: 3KW
- Voltage: 220V 50hz
- Air consumption: 0.5-0.7 MPA
- Air consumption: 200L/M
- External Dimension: 2530 x 840 x 2100 (L x W x H) mm
- Weight: about 800Kg
- Material processed: watery liquid, low viscous liquid
Suitable bottles:
