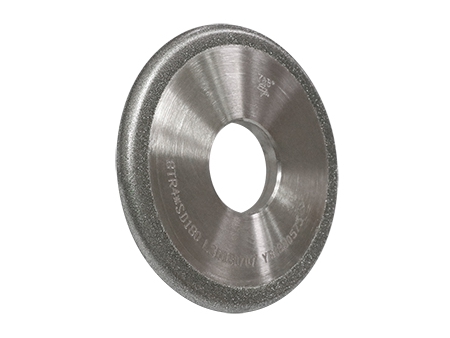

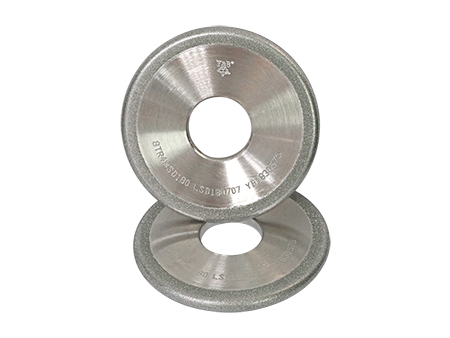

Electroplated Diamond Grooving Wheel for Drill Bits
Request a Quote
This product has been discontinued and removed from our shelves.

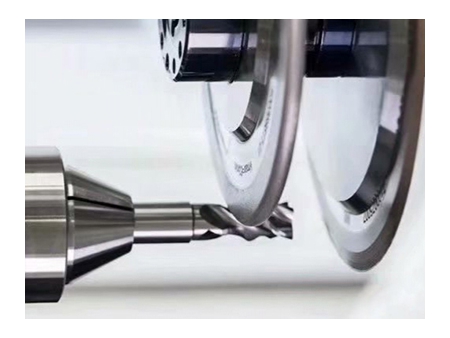

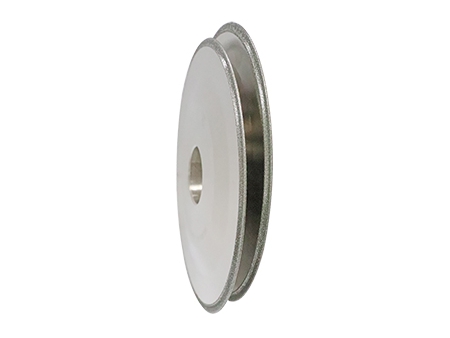

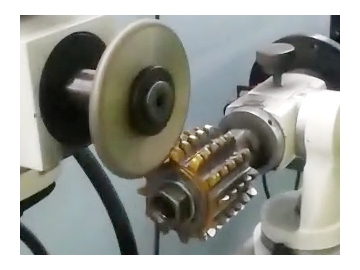

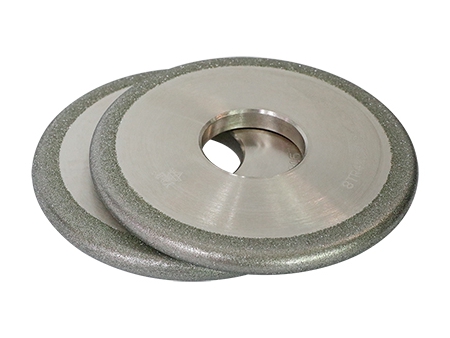

Yubao electroplated diamond grooving wheels are commonly applied for the grooving process of hard alloy cutters like drill bits, spade bits, and thread taps. These products are highly durable and carefully processed with great accuracy regarding size and specifications. 1F1 type and 14F1 types are available.

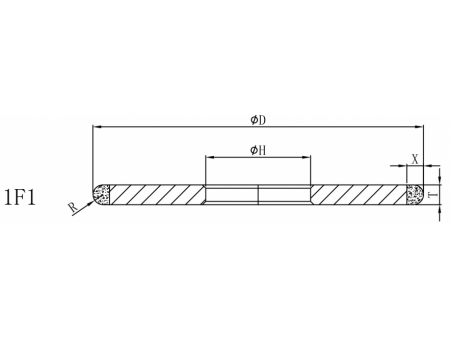

1F1 grinding wheel
| Outer diameter(mm) | Overall thickness(mm) | Arbor hole diameter(mm) | Fillet radius(mm) | Abrasive width(mm) |
| 80 | 6-10 | 12.7/25.4/31.75/32/127 | 3-5 | 2-10 |
| 100 | ||||
| 125 | ||||
| 150 | ||||
| 200 |
Note: other specifications can be customized upon request!

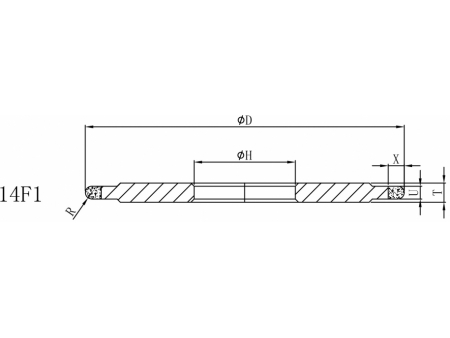

14F1 grinding wheel
| Outer diameter(mm) | Overall thickness(mm) | Arbor hole diameter(mm) | Abrasive thickness(mm) | Fillet radius(mm) | Abrasive width(mm) |
| 80 | 6-25 | 12.7/25.4/31.75/32/127 | 1-10 | 0.5-5 | 2-10 |
| 100 | |||||
| 125 | |||||
| 150 | |||||
| 200 |
Note: other specifications can be customized upon request!
