Plastic Hem Folding Machine
Request a Quote
Video

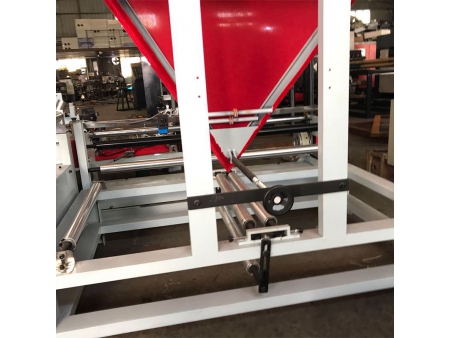

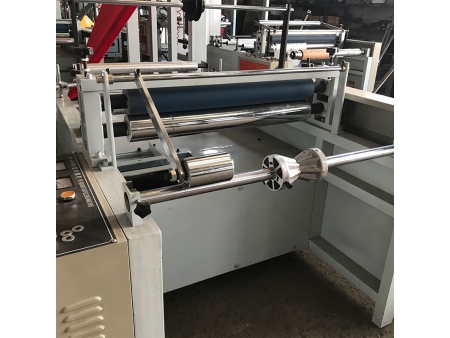

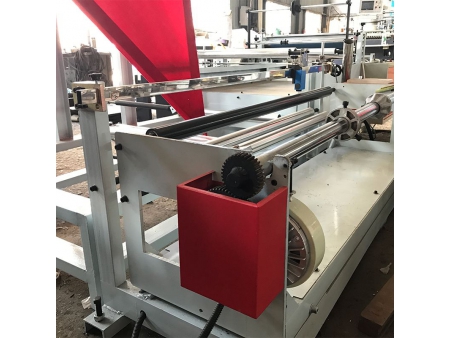

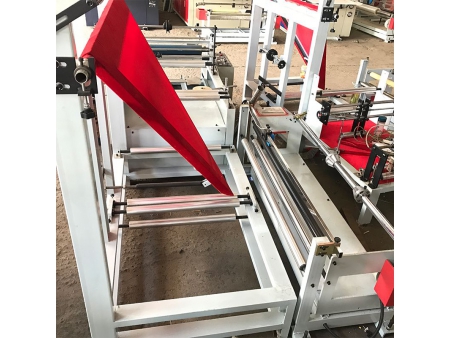

This plastic hem folding machine is a part of a thermal cutting machine set, designed for BOPP folding and featuring automated gluing, bottom gusseting, pearlized BOPP film inserting and longitudinal sealing along with an ultrasonic generator, and roll material breaking (the breaking mechanism is individually located).
Technical Parameters
| Type | ZB1200 | ZB1400 | ZB1600 |
| Max. Web width (mm) | 1200 | 1400 | 1600 |
| Max. rewinding speed (m/min) | 60 | 60 | 60 |
| Total Power (kW) | 1.1 | 1.1 | 1.5 |
| Weight (kg) | 800 | 900 | 1000 |
| Dimensions (m) | 2.4*1.5*1.5 | 2.6*1.5*1.5 | 2.8*1.5*1.5 |
