Request a Quote
Key Features
  • Ambient Temperature:-20℃ to 45℃
  • Voltage:DC24V
  • Length/Reel(M/ft):5m/16.4ft
  • TM-30-15, CRI 80 , Rf>95, Rg ≥100 allow objects to reflect and display colors similarly to natural light
  • Constant current IC chips allow for lower voltage drop and uniform lighting through the whole strip
  • 2200-3000K warm white light
  • Non-waterproof, dustproof, best for indoor applications
  • High color consistency with color tolerance within 5SDCM
*Please contact our sales for the latest details and certifications

Specification

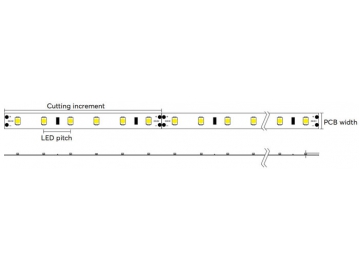

Model Led Qty Power Lumens per feet Cutting increment LED pitch PCB width
FP14W-P0-G1 28HX8x 24VC80S W10L05 80LEDs/M 14.4W/M
4.39W/ft
1728-2088lm/M
527-636lm/ft
100mm
3.94˝
12.5mm
0.49˝
10mm
0.39˝
FP20W-P0-G1 28HX8x 24VC160S W10L05 160LEDs/M 20W/M
6.1W/ft
2304-2784lm/M
702-849lm/ft
50mm
1.97˝
6.25mm
0.25˝
10mm
0.39˝
FP10W-P0-G1 28HZ9x 24VC60S W10L05 60LEDs/M 9.6W/M
4.39W/ft
780-1060lm/M
238-323lm/ft
100mm
3.94˝
16.7mm
0.49˝
10mm
0.39˝
Note:'x' (CCT) ="24"(2400K) / "27"(2700K) / "30"(3000K) / "40"(4000K) / "50"(5000K) / "60"(6000K),Please contact us for more information.

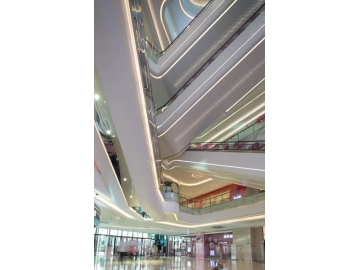

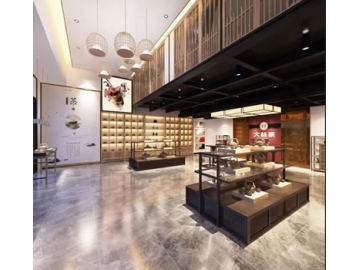

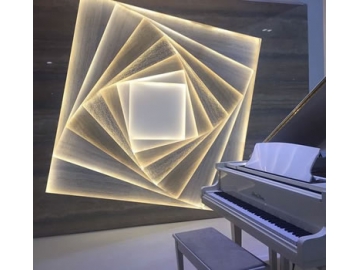

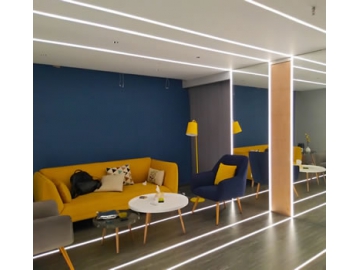

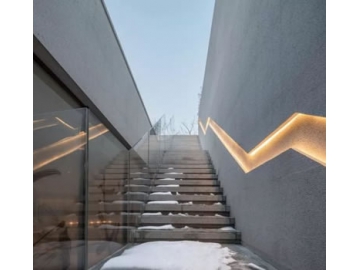

  • Applications
Accessories

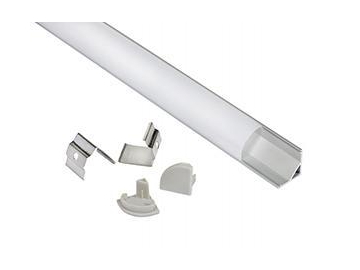

  • LED Aluminum Channel

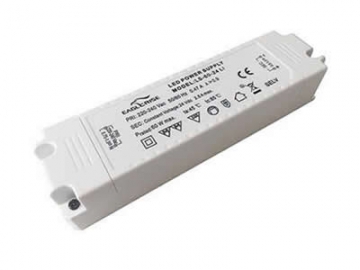

  • Non-waterproof LED Power Supply, Compact Series

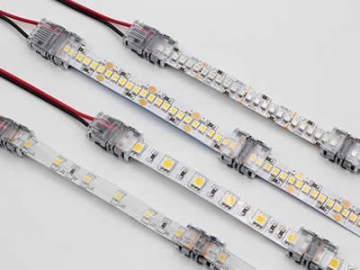

  • SE Series LED Strip Connectors
Projects

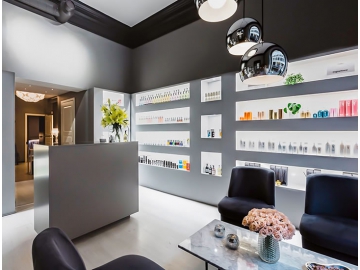

  • Cosmetics stores in Sweden

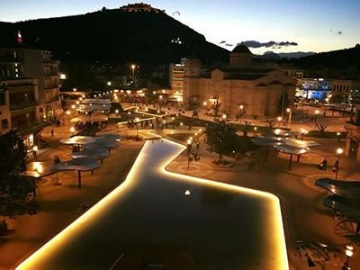

  • Argos Central Square, Greece

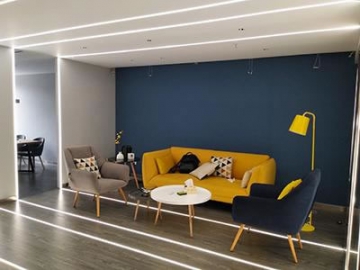

  • Office Lighting Project in Guangzhou
