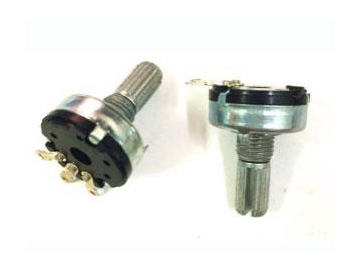

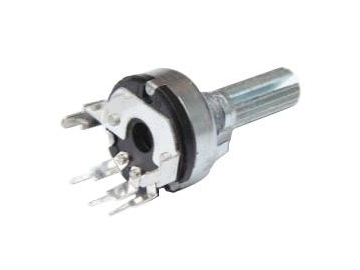

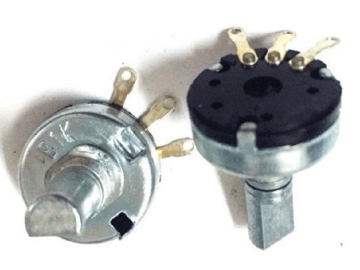

Metal 17mm 4K Rotary Carbon Film Potentiometer, RV17 Series
Request a Quote
Our metal 17mm 4K Rotary Carbon Film Potentiometers are particularly suited for application in consumer electronics, automotive electronics, audio amplifiers, and medical equipment. Utilizing a firmly structured metal shaft, these potentiometers offer greater durability so as to prevent damage during use.
Now We Have
| Series | Photo | Diameters | Total rotational angle | Rotational torque | Stopper strength | Total resistance | Shaft Types |
| 17mm | 260°±10° | 20~200gf.cm | ≥4kgf | 500Ω-1MΩ | knurled shaft | ||
| 17mm | 260°±10° | 20~200gf.cm | ≥4kgf | 500Ω-1MΩ | flat shaft | ||
| 17mm | 260°±10° | 50~300gf.cm | ≥4kgf | 500Ω-1MΩ | knurled shaft |
