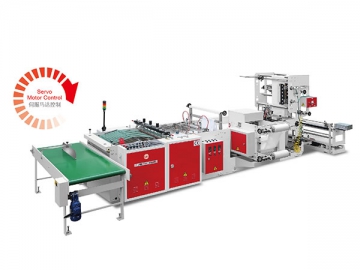

CW-800LP Fully Automatic Soft Loop Handle Bag Making Machine

<span class=new-btn>CW-800LP Fully Automatic Soft Loop Handle Bag Making Machine</span>
<span class=new-btn>CW-800LP Fully Automatic Soft Loop Handle Bag Making Machine</span>
<span class=new-btn>CW-800LP Fully Automatic Soft Loop Handle Bag Making Machine</span>
<span class=new-btn>CW-800LP Fully Automatic Soft Loop Handle Bag Making Machine</span>
<span class=new-btn>CW-800LP Fully Automatic Soft Loop Handle Bag Making Machine</span>
<span class=new-btn>CW-800LP Fully Automatic Soft Loop Handle Bag Making Machine</span>
<span class=new-btn>CW-800LP Fully Automatic Soft Loop Handle Bag Making Machine</span>
Request a Quote

Features of the soft loop handle bag making machine
1. With servo motor drive, PLC and touch screen control
2. Machine frame is made of prefabricated flame cut sheet 12mm thick to ensure the machine rigidity.
3. Any different type of the bag with several uses as options, easy to replace
4. Automatic loop handle feeding and sealing function, to save labor cost and space for your factory
5. The use of oval handle punch enables the machine to make die cut handle bag as well.

Option
1. Double sealing knife
2. Bottom sealing knife
3. Air hole punching unit

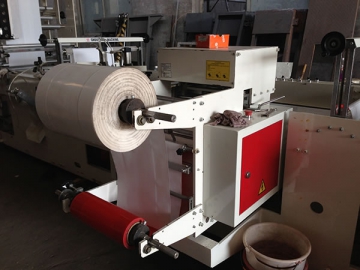

  • Unwinder
  • Continuous sealing device

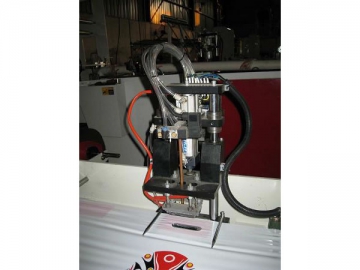

  • Loop handle sealing device
  • Sealing knife

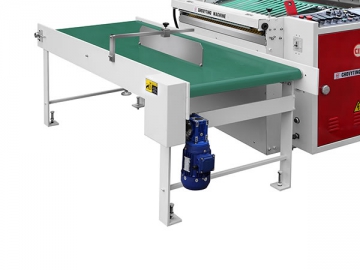

  • Auto conveyor table
Technical parameter of the soft loop handle bag making machine
Model CW-800LP
Length of bag making 250-750mm
Width of bag making 250-600mm
Speed of loop handle bag making 60pcs/min
Speed of die cut handle bag making 80pcs/min
Top fold 50-75mm
Bottom gusset 20-70mm
Total power 10kw
Weight of machine 3200kgs
Overall dimension 6000x3100x1870 mm
Air compressor 6HP
