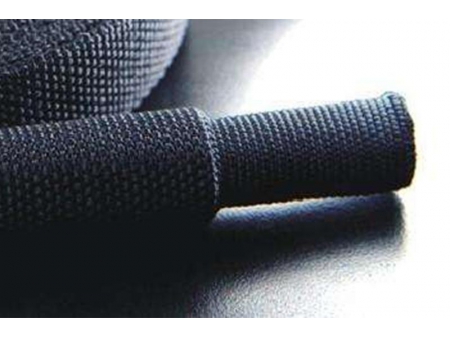

Heat Shrinkable Braided Sleeving
Request a Quote
CYG-RSF
- Lengthwise: High-strength, wear-resistant fiber
- Crosswise: Cross-linked modified polyolefin resin
- Shrink ratio: 2:1
- Operating temperature: -40℃～125℃
- Shrink temperature: 110℃
- Maximum storage temperature: 60℃
Applications
- Our heat shrinkable braided sleeving is extensively used for protecting automotive tubing, and other applications requiring abrasion resistance, shock absorption, and noise reduction.
Features
- Shrink ratio: 2:1
- Operating temperature: -40℃～125℃
- Shrink temperature: 110℃
- Maximum storage temperature: 60℃
- High flexibility, easy installation, and high abrasion resistance
- Standard color: black
- UL224 certified, Certification Number: E329207
| Properties | Test Method | Performance |
| Abrasion resistance | 23℃, 200g load, 144000 cycles | No damage to underlying hose |
| Low temperature flexibility | -40℃, 4h | No cracking |
| Cold shock | 200g weight from 100mm at -40℃ | No cracking |
| Heat shock | Between -40°C and 125°C, 100 cycles | No damage to underlying hose under 23℃ |
| Fluid resistance | 24h immersion at 23℃ Antifreeze (50% ethylene glycol), engine oil, inorganic hydraulic fluid, detergent, brake fluid, unleaded gasoline, diesel fuel, battery acid | No damage to underlying hose under 23℃ |
Shrink Ratio: 2:1
| Size | Minimum Inside Diameter As Supplied (mm) | Maximum Inside Diameter After Recovery (mm) |
| CYG-RSF-12/6-B | ≥12 | ≤6 |
| CYG-RSF-20/10-B | ≥20 | ≤10 |
| CYG-RSF-30/15-B | ≥30 | ≤15 |
| CYG-RSF-40/20-B | ≥40 | ≤20 |
| CYG-RSF-50/25-B | ≥50 | ≤25 |
| CYG-RSF-60/30-B | ≥60 | ≤30 |
| CYG-RSF-70/35-B | ≥70 | ≤35 |
| CYG-RSF-80/40-B | ≥80 | ≤40 |
| CYG-RSF-120/60-B | ≥120 | ≤60 |
