RFID Jewellery Label

Request a Quote

View All: http://jlrfidlabel.com/rfid-in-apparel-and-retails.html

High security, anti-theft, improve inventory efficiency
Multi-tag identification, identification of high sensitivity, fast, with Korfball unique identification code

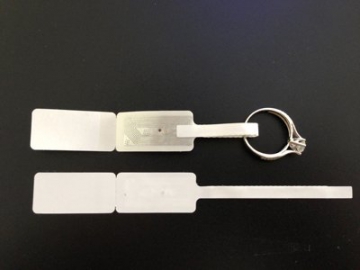

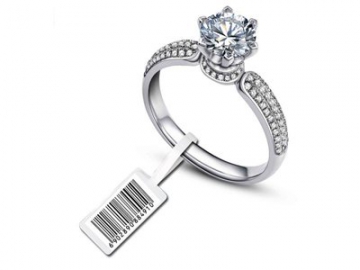

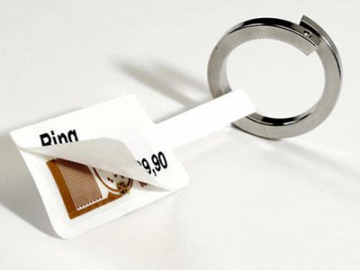

Mainly for jewelry counter display, improve product quality, easy to manage jewelry. But also it can be used for watches, glasses and other various industries

● Basic Parameters
Types	UHF passive RFID tags
Working Frequency	860-960MHz
Protocol	ISO / IEC 18000-6C EPC Class1 Gen2
● Physical Parameters
Size	Can be customized
Packaging Materials	PET, PVC, coated paper
Antenna	Aluminum etching antenna
Craft	4C Offset printing,Print ID number,Encoding
● Performance Parameters
Chip	Alien H3, impinjM4D / M4E / M4QT / M5
Storage	Related to the chip
Operating mode	read and write
Data Retention	> 10 years
Writing Endurance	100,000 times
Reading Distance	0-10m (the reading range is related to the working conditon and reader)
● Environmental Parameters
Working temperature	(-25 ℃ ~ + 55 ℃)
Storage temperature	(-35 ℃ ~ + 70 ℃)
● Typical Applications
Applications	Jewellery Management
● Package
Packaging Information	Piece/Roll
