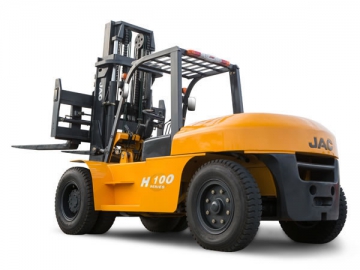

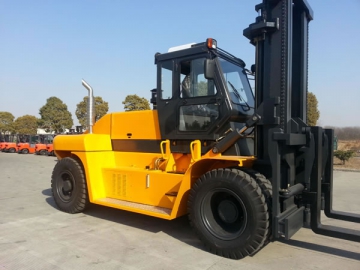

Diesel Forklift (16T Forklift Truck)
| Model | CPCD160H |
| Rated Load Capacity | 16000kg |
| Engine | YUCHAI6A180Z |
| Gearbox | Hydraulic/automatic (TCM technology) |
| Standard Mast | 2-stage mast (3m) |
| Container Mast (Optional) | 2-stage or 3-stage full free mast (3m-6m) |
| Tyre | Pneumatic tyre (Standard), solid tyre (Optional) |
| Side Shifter (Optional) | Integrated type side shifter, CASCADE side shifter |
Related Information
HS Code: 8427209000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year

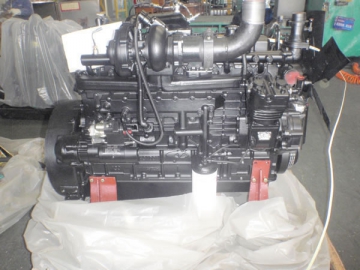

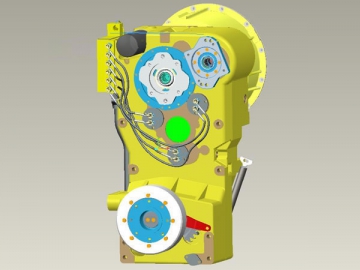

1. Scientifically designed power transmission system

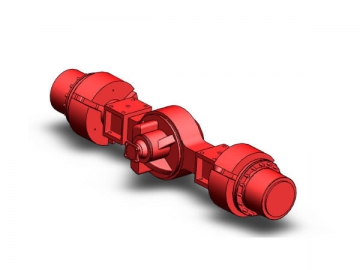

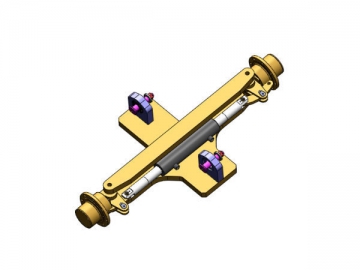

2. Dedicated twin axle for heavy-load lift truck
3. Reliable hydraulic system

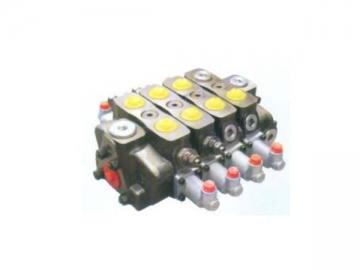

A . The hydraulic system of the diesel forklift adopts imported multi-way valve for high safety and high reliability.

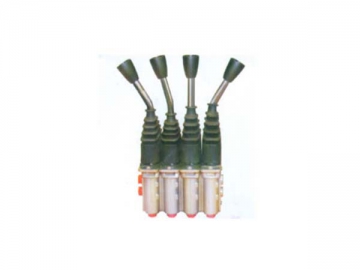

B. Under the control of remote pilot hand lever, the hydraulic system of the material handling equipment helps achieve easy and convenient operation.
C. The main hydraulic parts are purchased from well-known suppliers home and abroad, and have passed performance test.

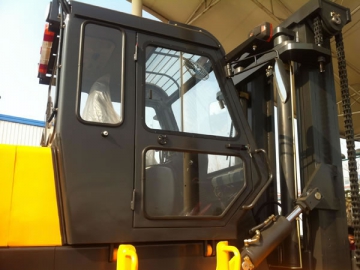

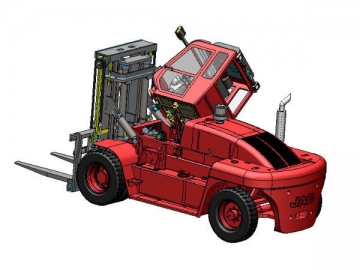

4. The tip-over of the spacious cab can be controlled manually or electrically.
| Model | Unit | CPCD160H | |
| Load Capacity | Kg | 16000 | |
| Load Center | mm | 900 | |
| Mast Lifting height | mm | 4000 | |
| Mast Free Lift | mm | 100 | |
| Mast Lifting Speed (With Load) | mm/s | 220 | |
| Mast Tilting Angle (Front/Rear ) | ° | 8°/ 10° | |
| Driving Speed | km/h | 26 | |
| External Dimension | Length to face of forks | mm | 5980 |
| Overall width | mm | 2620 | |
| Height of mast, lowered | mm | 3845 | |
| Fork | mm | 2520 | |
| Service Weight | kg | 25000 | |
| Engine | Model | YUCHAI6A180Z | |
| Rated Output | KW | 140 | |
| Rated power speed | rpm | 2000 |
