Automatic Rotary Premade Pouch Packaging Machine Manufacturer

Automatic Rotary Premade Pouch Packaging Machine

Request a Quote

Website: http://pouchpacking-en.com/1-single-lane-rotary-premade-pouch-packaging-machine.html

Rotary pouch filling and sealing machine for ready-made pouches filled with granules, powders and liquids

Bag width
50 to 300mm
Filling range
10 to 5000g
Packaging speed
40 bags per minute

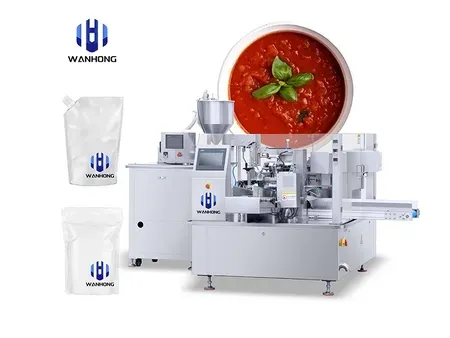

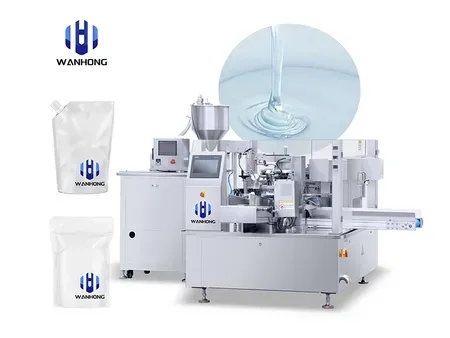

Premade Pouch Liquid Packaging Machine

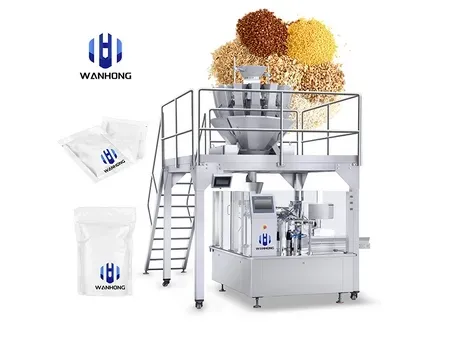

Premade Pouch Granule Packaging Machine

Premade Pouch Powder Packaging Machine

The WHR series fully automatic rotary premade pouch filling and sealing machine is designed to provide reliable and efficient packaging solutions for various materials, including powders, granules, and liquids. It is ideal for industries such as food, pharmaceuticals, and daily chemicals. This rotary premade pouch packing machine is compatible with a variety of premade pouches, including flat pouches, spout pouches, zipper pouches, stand-up pouches, stand-up zipper pouches, shaped bags, and eight-side seal bags.

Applications

This premade pouch packing machine is versatile and suitable for packaging a wide variety of materials:

Liquid Packaging:

Granule Packaging:

Powder Packaging:

Cooked Food Packaging:

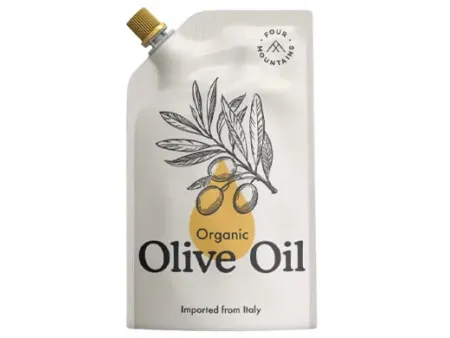

Oil packaging

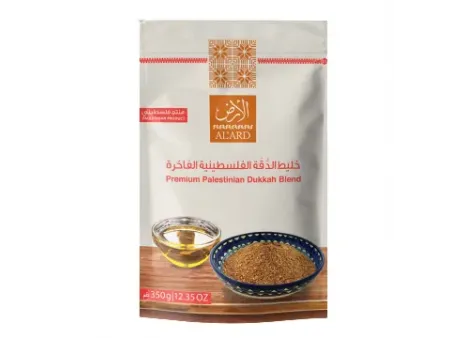

Spice packaging

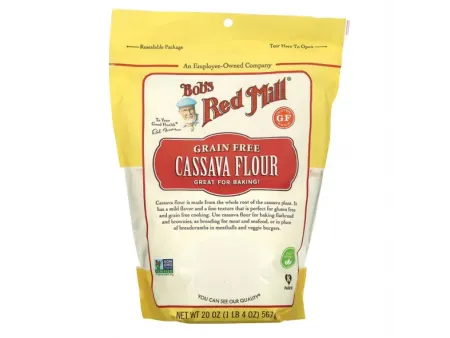

Cassava flour packaging
Cocoa packaging
Oats packaging
Snack packaging

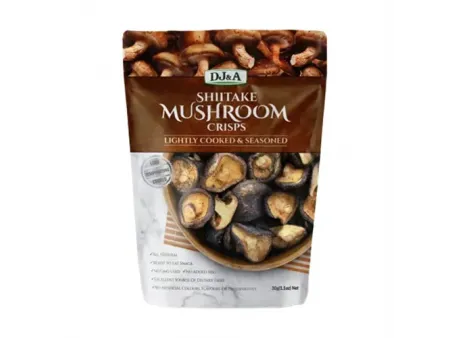

Dried mushroom packaging
Dried mango packaging
Lollipop packaging
Spice packaging

Bag Styles

Four side seal bag
Stand-up bag
Spout pouch
Doypack/stand-up zipper pouch
Eight side seal bag/gusset pouch

Specifications

Model	WH8-230R	WH8-300R
Bag size	W: 80-230mm L: 100-400mm	W: 180-300mm L: 150-450mm
Packaging speed	30-60 bags/min	20-50 bags/min
Filling range	10-2500g	100-5000g
Machine dimensions	2500×1460×2000mm	2140×1830×1800mm
Machine weight	1500kg	2000kg
Air consumption	0.6m³/min	0.6m³/min

Standard Configurations

PLC	Frequency Converter	Touch Screen	Solenoid Valve	Bearing
Siemens	Siemens	Siemens	FESTO	IKO/IGUS

Features

Bag Width Range Can handle pouch widths from 50mm to 300mm, providing flexibility for different packaging needs.
Filling Range Capable of filling material ranging from 10g to 5000g.
Packaging Speed High-speed performance of over 40 pouches per minute, ensuring efficient production.
User-Friendly Interface A 10-inch touch screen offers easy access to settings, making operation seamless.
Compact and Space-Efficient Design The electrical cabinet is positioned at the bottom, saving space and offering mobility.
Easy Maintenance The entire unit is washdown-ready with an integrated water tank for cleaning convenience.
Durable Construction Built with stainless steel (304) for long-lasting durability and food safety.
Mechanical Drive Uses a robust mechanical transmission, offering stability and a long service life of 20 years.
Automatic Oil Supply System The machine is maintenance-free, and adjustments are easy, making it convenient for quick setup and operation.
Adjustable Pouch Width Simple and integrated adjustments to accommodate different pouch sizes.
Fast packing speed Achieves a packing speed of over 40 bags per minute, ensuring high efficiency and fast production times.

Workflow

Bag loading
Date coding
Bag opening
First filling
Second filling
First heat sealing
Second heat sealing
Output

Details

Set the parameters, start, or turn off functions using the touch screen of the WHR series fully automatic rotary premade pouch filling and sealing machine, offering you complete control over the packaging process.

Suitable for flat bags and can store a large stack of bags at once, significantly reducing labor costs.

Features a foldable flexible door, offering convenience and easy access for operation.

Equipped with a sliding electric cabinet, ensuring easy access and space-saving design for efficient operation.

Opens the bag using a suction cup, ensuring smooth and precise bag handling during the packaging process.

Date Coding

Uses a heating sealing system with two sealing steps, and the sealing pattern can be customized to meet your packaging needs.

Outputs the packaged products, ready for the next stage in your production process.

Suitable for spout pouch loading, providing flexibility for different pouch types in your packaging operations.

Suitable for loading large and soft bags, offering versatility in handling different pouch types.

Suitable for loading uneven bags, such as stand-up zipper pouches, ensuring reliable performance with various pouch shapes.

Designed for stand-up pouches, equipped with a sensor to ensure the bottom of the bag is properly opened. If the bag's bottom isn't fully opened, the machine will not proceed with filling.

Suitable for liquid materials, ensuring the packaging machine stays dry and clean at all times for optimal performance.

Suitable for granules, designed to prevent particles from blocking the bag opening, ensuring smooth and efficient filling.

Suitable for granules, designed to prevent particles from blocking the hopper, ensuring smooth and continuous material flow during packaging.

Suitable for liquids, designed to prevent liquid residue from remaining at the bag opening, ensuring a secure and clean seal every time.

Suitable for packaging heavy items, ensuring that bags remain securely in place during the packaging process, preventing them from slipping.

Embossed Printing

Inkjet Printing

Laser Printing

Suitable for zipper bags, designed to open the zipper for easy filling and sealing.

Automatic Lubrication System

How do I adjust the packaging equipment to accommodate different bag sizes?

Bag Magazine Width: Adjusted via the spiral mechanism.
Bag Clamp Distance: Set through the touch screen interface on the WHR series fully automatic rotary premade pouch filling and sealing machine.

Does the packaging equipment have multi-functional configurations?

Yes, customized solutions are available based on different materials and pouch types. Several optional features are available:

For granule materials, choose the bag bottom vibration feature.
For powder materials, use the bag opening dust removal function.
For liquid materials, select the rotary air blow function to clean the bag opening.
For spout pouches, use the specific loading method for spout bags.
For zipper bags, enable the zipper bag opening function.

What types of products can the WHR Series Fully Automatic Rotary Premade Pouch Filling and Sealing Machine package?

The WHR series fully automatic rotary premade pouch filling and sealing machine is suitable for packaging a variety of products, including:

Liquids: Beverages, juices, detergents, and more.
Powders: Laundry powder, milk powder, flour, and other dry goods.
Granules: Coffee beans, snacks, nuts, and more.
It can handle multiple types of premade pouches, including flat, spout, zipper, stand-up, and more.

Contact us today to learn more about how the fully automatic rotary premade pouch filling and sealing machine can optimize your packaging process and improve efficiency!
