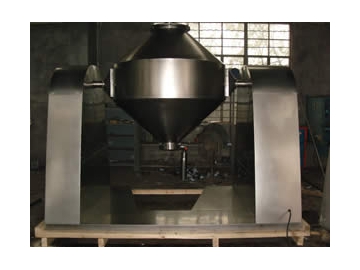

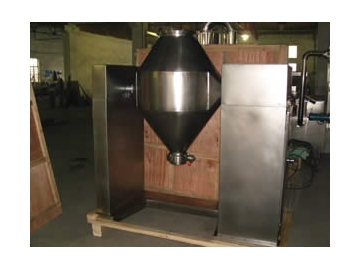

Double Cone Mixer
These mixers are essential tools in various sectors like pharmaceutical, chemicals, and food industries. They are especially well-suited for mixing solid materials in large volumes.
Features
Materials can be transported into the double-taper container either through a vacuum conveyor or manually. As the container rotates, it ensures that the materials are moved thoroughly and mixed uniformly. This continuous and complex movement inside the container guarantees a uniform mix.
| Model | Gross Volume (L) | Working Volume ( L) | Mixing Time (min) | Rotary Speed (rpm) | Power (kW) | Weight (kg) |
| 50 | 30 | 4-8 | 20 | 0.75 | 160 | |
| 100 | 60 | 4-8 | 15 | 0.75 | 220 | |
| 200 | 120 | 4-8 | 12 | 1.1 | 280 | |
| 300 | 180 | 6-10 | 12 | 1.1 | 380 | |
| 400 | 240 | 6-10 | 12 | 2.2 | 450 | |
| 500 | 300 | 6-10 | 12 | 2.2 | 550 | |
| 600 | 360 | 6-10 | 12 | 3 | 600 | |
| 1000 | 600 | 6-10 | 12 | 4 | 700 | |
| 1500 | 900 | 6-10 | 12 | 4 | 900 | |
| 2000 | 1200 | 6-10 | 12 | 7.5 | 1500 | |
| 2500 | 1500 | 6-10 | 12 | 7.5 | 1800 | |
| 3000 | 1800 | 6-10 | 7.8 | 7.5 | 2200 |
Jiangnan Enterprise is an experienced double cone medicine mixer manufacturer based in China. Our products include high efficiency tablet coating machine, high speed blister packaging machine, automatic medicine packaging production line, semi automatic capsule filling machine, and much more.
