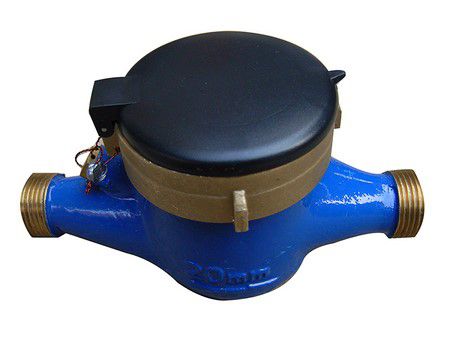

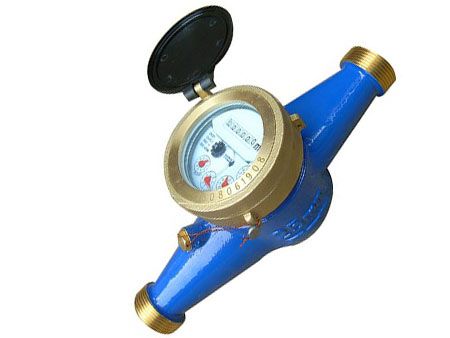

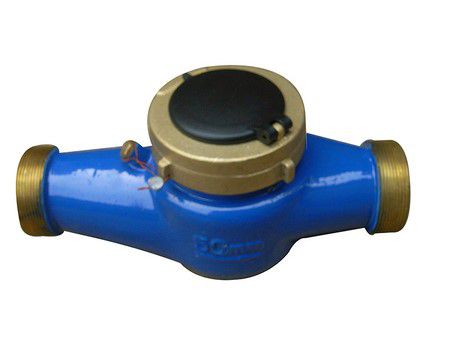

Wet Dial Water Meter
Request a Quote
Multi-jet vane wheel water meter
Our wet dial water meters are designed to meet diverse measurement needs, making them suitable for a wide array of applications:
- Ideal for accurately tracking household water usage.
- Dependable for managing water consumption in business and industrial settings.
- Effectively monitors water usage in schools, hospitals, and other public entities.
- Crucial for monitoring and managing urban water services, providing essential data for city water management.
Specifications
| Nominal diameter | Approval ratio R | Overload flowrate Q4 | Permanent flowrate Q3 | Transitional flowrate Q2 | Minimal flowrate Q1 | Resolution of reading | Maximum reading |
| mm | Q3/Q1 | m³/h | m³ | ||||
| 15 | 80 | 3.1 | 2.5 | 0.050 | 0.031 | 0.00005 | 99,999 or 999,999 |
| 100 | 0.040 | 0.025 | |||||
| 20 | 80 | 5 | 4 | 0.080 | 0.050 | 0.00005 | 99,999 or 999,999 |
| 100 | 0.064 | 0.040 | |||||
| 25 | 80 | 7.9 | 6.3 | 0.126 | 0.079 | 0.00005 | 99,999 or 999,999 |
| 100 | 0.101 | 0.063 | |||||
| 32 | 80 | 12.5 | 10 | 0.200 | 0.125 | 0.00005 | 99,999 or 999,999 |
| 100 | 0.160 | 0.100 | |||||
| 40 | 80 | 20 | 16 | 0.320 | 0.200 | 0.00005 | 999,999 |
| 100 | 0.256 | 0.160 | |||||
| 50 | 80 | 31 | 25 | 0.500 | 0.313 | 0.00005 | 999,999 |
| 100 | 0.400 | 0.250 | |||||

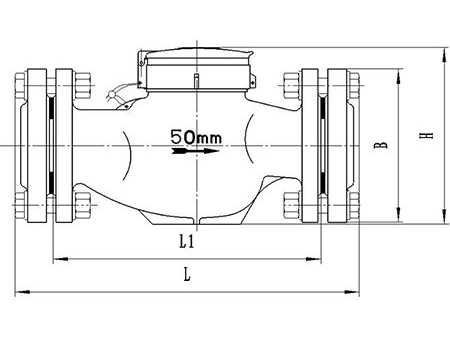

Dimensions
| Nominal diameter | Length L1 | Length L | Width B | Height H | Threaded connection | |
| mm | D | d | ||||
| 15 | 165 | 259 | 98 | 108 | G¾B | |
| 20 | 195 | 299 | 98 | 110 | G1B | |
| 25 | 225 | 345 | 103.5 | 115 | G1¼B | R1 |
| 32 | 230 | 354 | 103.5 | 115 | G1½B | |
| 40 | 245 | 373 | 125 | 156 | G2B | |
| 50 | 300 | 446 | 125 | 156 | G2½B | R2 |
| 50 | 280 | 360 | 165 (External diameter of flange) | 181 | Flange connection 8-M16 | |
Features
- Efficient multi-jet mechanism (rotary vane wheel type) to ensure consistent and reliable water flow measurement.
- The dial is liquid sealed to maintain readability and clarity over long periods.
- These meters combine the advantages of low startup flow of wet-type meters with the clear readability of dry-type meters, making them suitable for networks with varying water quality.
- Complies with ISO 4064 Class B (R80) standards, ensuring accurate water metering.
- We offer production of high-sensitivity models within the same range to meet specific requirements.
- Available with iron or copper casings, with an option for coated finishes on copper bodies.
Working Conditions
- Water pressure ≤1.6MPa (16bar)
- Pressure class: MAP10
- Pressure loss class: Δp63
- Upstream flow field sensitivity class: U10
- Downstream flow field sensitivity class: D5
