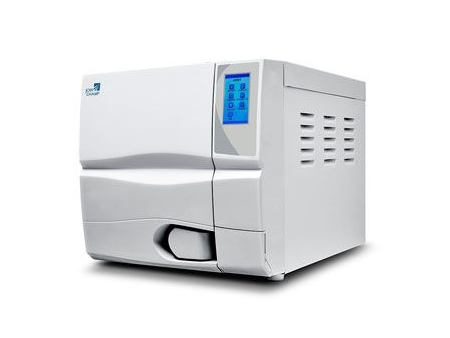

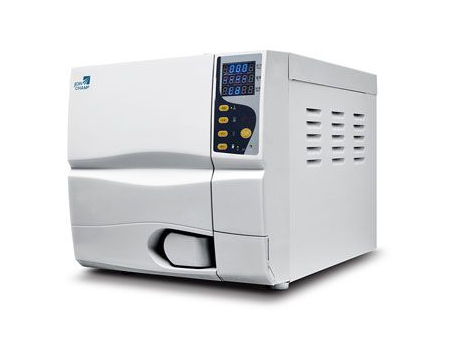

Steam Autoclave TIGER Series, Dental Autoclave
The steam autoclave TIGER series is commonly seen in operating theaters, dental rooms, ophthalmology departments and biomedical research institutes to sterilize autoclavable equipment and supplies, such as surgical instrument, dental appliance, surgical dressing, laboratory glassware, injection device, etc.
| Model | | |
| Voltage | AC220V | AC220V |
| Frequency | 50/60Hz | 50/60Hz |
| Power | 2000W | 2200W |
| Volume | 18L | 22L |
| Size of chamber | 250×355mm | 250×450mm |
| N.W | 47kg | 51kg |
- Our steam autoclave is in accordance with European Standard of Class B, in line with EN13060 safety test. It has 1-time and 3-time pulsating pre-vacuum technology and drying function.
- The vacuum degree of our dental autoclave can reach up to -82Kpa, and the dryness of at least 99.8%. In general, this device is suitable for instrument sterilization of wrapped and unwrapped solid load, as well as hollow and porous internal pipe equipment.
- The innovative high-temperature steam drying provides better dryness effect, in specific, the sterilization temperature can either be 121°C or 134°C.
- In detail, the steam autoclave is equipped with HD color touch screen, as well as real-time display of sterilization process data. Also, the device can support 8 languages, including Chinese, English, Russian, Spanish, Persian, Arabic, French, and Ukrainian.
- The optional built-in micro-printer can print both Chinese and English sterilization records. Moreover, there is a USB port that can be used to store the records.
- 3 types of test procedures: water quality test, vacuum degree test, Bowie & Dick test (B&D test)
- 5 types of sterilization programs: universal B program, quick B program, quick S program, gentle 121°C program, enhanced B program
- For the control chip, TIGER series adopted American Microchip high-speed control chip. This type of control chip leads to good performance, high accuracy, latest PID control algorithm, as well as the good combination of hardware and software protection measures. Hence, it can ensure the operation reliability and low failure rate of the device.
-
The customized solenoid valve for our steam autoclave has a large latus rectum. This demanding valve controls the temperature in the device, assisting in the good performance of the autoclave.
The jet-type of steam generator enables quicker heat up times, as well as better penetration leading to reduced cycle times. Hence, the steam autoclave has efficient drying process and longer service life.
-
-
The top-mounted water tank has passed strict quality assurance, which guarantees the safety and reliability. Also, due to its location, the water tank is more convenient for cleaning.
The high quality stainless steel liner and tray are available in our steam auclave, which are the best sterilizing option that can save space and accommodate more equipment in the sterilizer.
-
-
The drainage valve is equipped in the product, which is used for cleaning and changing clean water, and it has high-speed operation and convenience characteristics.
