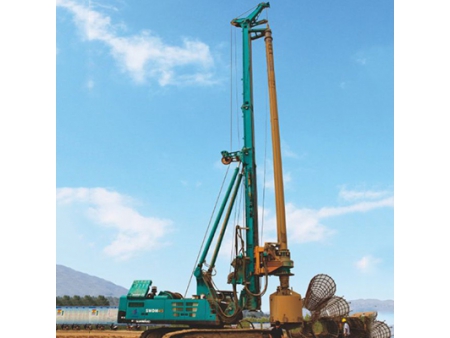

Rotary Drilling Rig SWDM550H2
  • Overall height: 35.3m
  • Max. drilling diameter: 3.5m
  • Max. drilling depth: 135m

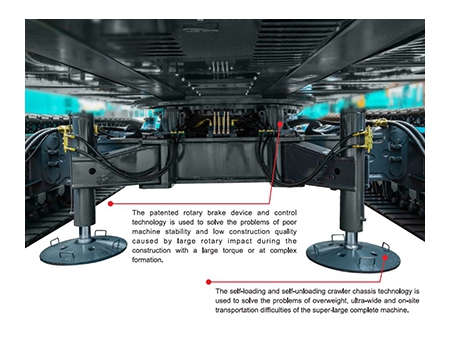

Patented slewing mechanism improves the operation stability during rock drilling;

High strength mast material, high stability luffing mechanism and heavy-duty retractable crawler undercarriage, ensuring high anti-fatigue effect and extended service life;

Main winch is connected using pin connection method for easy mounting and dismantling; Removable crawler undercarriage and auxiliary outrigger cylinder enable the rig to be easily transported;

Adopting Volvo engine, featuring sufficient power, low fuel consumption, low noise level and high operating efficiency;

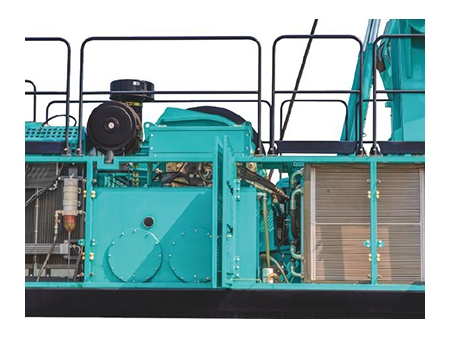

Optimized hydraulic circuit arrangement contributes in reduced pressure loss and expanded space for easy maintenance;

Long crowd stroke and large crowd pressure, satisfying the requirements of application of fully-cased bored piles;

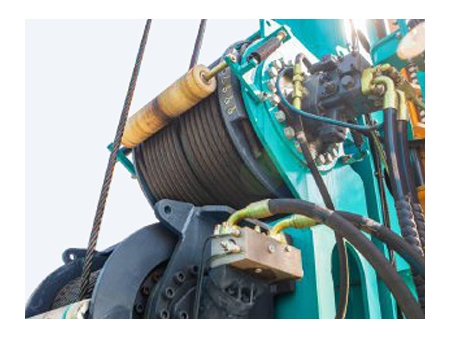

Single-layer winding of steel rope on a large-diameter drum for minimal rope wear, increasing 50% of rope life; Centralized lubrication system enables the daily maintenance quicker and easier and prolongs the service life of rig;

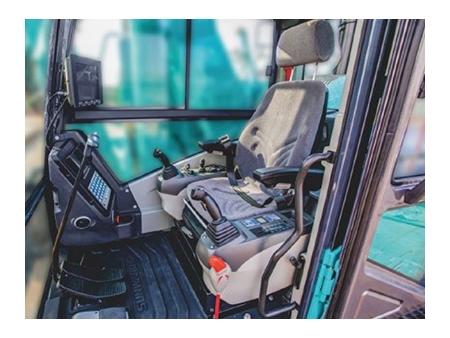

Fault self-diagnosis and alarm, real-time display of drilling parameters, control unit with one-button locking, providing guaranteed operation safety;

Through mobile phone APP (cloud platform), operating data can be synchronously transmitted and the equipment status can be monitored via monitoring camera at any time;

Technical Specifications
Drill hole Max. drilling diameter mm 3500
Max. drilling depth m 135/88
Engine Brand VOLVO
Model TAD1643VE-B
Power kW@rpm 565@1900
Rotary head Max. torque kN.m 550
Rotation speed rpm 5-24
High-speed removal of drill cuttings (optional) rpm 1
Crowd system Max. crowd pressure kN 480
Max. crowd pull kN 500
Max. stroke mm 10000
Main winch Max. line pull kN 600
Max. line speed m/min 50
Auxiliary winch Max. line pull kN 110
Max. line speed m/min 65
Mast inclination Lateral ° ±4
Forward/backward ° 90/15
Undercarriage Crawler width mm 1000
Crawler width (extended) mm 6000
Crawler length mm 7640
Complete machine Working height mm 35310
Working weight t 202

Statement of technical specification: all parameters above are subject to change due to the continuous improvement of the product, please to get the latest info updates.
