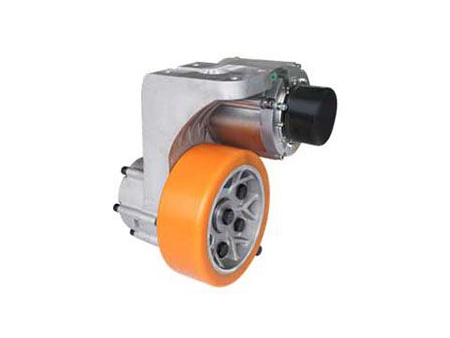

500W Drive Motor Assembly (PMDC Brushless Motor) TZ090AH1-JS13S

500W Drive Motor Assembly (PMDC Brushless Motor) TZ090AH1-JS13S
500W Drive Motor Assembly (PMDC Brushless Motor) TZ090AH1-JS13S
500W Drive Motor Assembly (PMDC Brushless Motor) TZ090AH1-JS13S
500W Drive Motor Assembly (PMDC Brushless Motor) TZ090AH1-JS13S
500W Drive Motor Assembly (PMDC Brushless Motor) TZ090AH1-JS13S
500W Drive Motor Assembly (PMDC Brushless Motor) TZ090AH1-JS13S
Request a Quote
Power
Your Motion

Application: electric material handling equipment

Technical Specifications
Rated Power (W) 500
Rated Voltage(V) 48
No-load Current(A) ≤4.5
No-load Revolution (RPM) 4600±8%
Rated Torque (N•m) 1.2
Rated Revolution (RPM) 4000±8%
Rated Current(A) ≤13.88
Working Cycle (min.) S2-60
Insulation Class F
Protection Level IP44
Gear Ratio 26:1

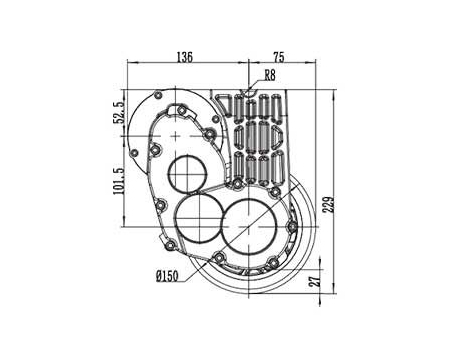

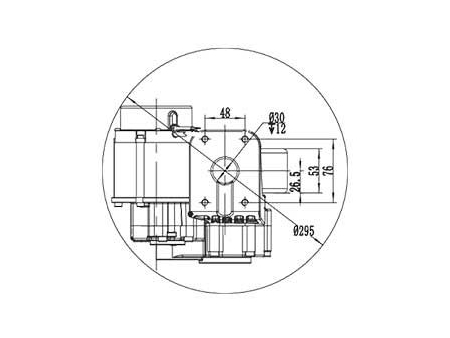

Length (L/mm) 211

Note: customized brushless DC drive motor assembly is available according to your application requirements and working conditions.
