Fabric CO2 Laser Cutting Machine
This product has been discontinued and removed from our shelves.

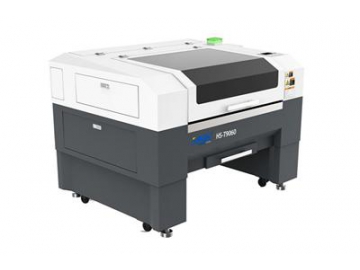

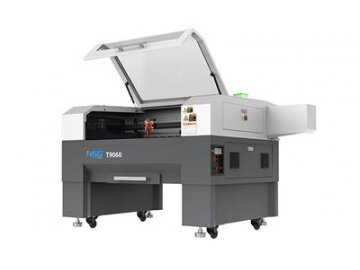

The T9060 fabric CO2 laser cutting machine is used cut various non-woven and cotton cloth and leather. The cutting is high quality, and highly efficient and highly precise with no burned edge.
We also offer auxiliary equipment with a variety of functions, including panoramic cameras, lift platforms, and more laser heads for customers to choose from to improve working efficiency based on their specific requirements.
Applicable materials: non-woven fabric, cotton, leather
Application industry: clothing, shoes, luggage, leather furniture and toys
| Processing Area | 900*600mm |
| Laser Power | 60W-150W |
| Max. Cutting Speed | 20m/min |
| Max. accelerated | 0.2G |
| X/Y Positioning Accuracy | 0.1mm/m |
| X/Y Repeated Positioning Accuracy | ±0.1mm |
| Power supply | 220V/50Hz |
| Whole machine weight | 250Kg |
| Machine dimensions | 1480*1140*1150mm |
*We can customize the processing width at 800mm×1000mm, 1600mm*1000mm, and 600mm×400mm.
** We can provide laser systems with various power levels. Materials and thicknesses to be cut all depend on the laser power.

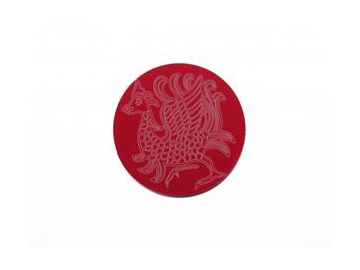

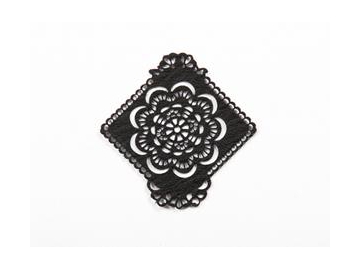

- Cloth

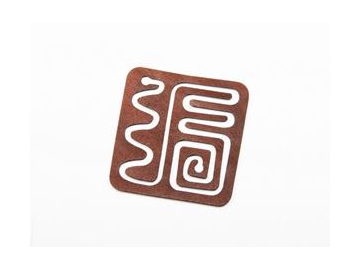

- Leather
- Textile
- Cotton
- Paper

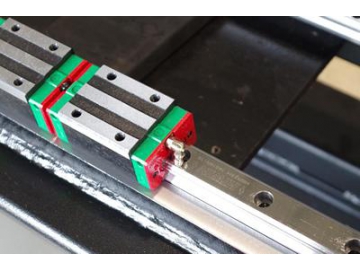

- The straight guide rail from Taiwan's HIWIN guarantees the cutting precision of the cutter.
-

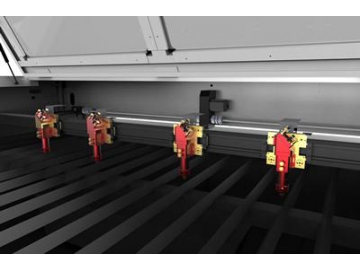

- In order to make the cutting of fabric and leather more efficient, the machine can be equipped with a maximum of 4 laser heads.
-

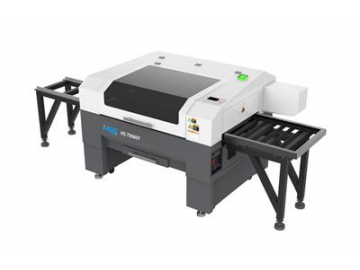

- Users can choose an automatic feeder to reduce required feeding manpower.
-

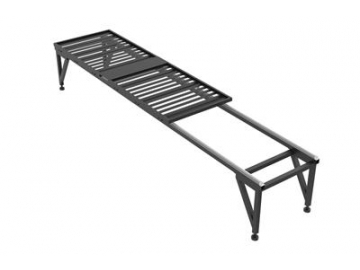

- Users can choose a mobile platform for more convenient material loading and unloading.
-

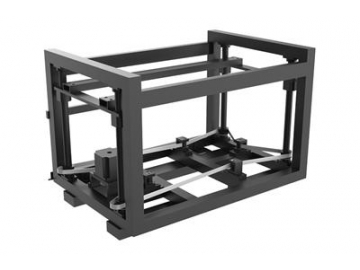

- Users can choose to equip the cutter with a lift platform to cut box shapes.
-

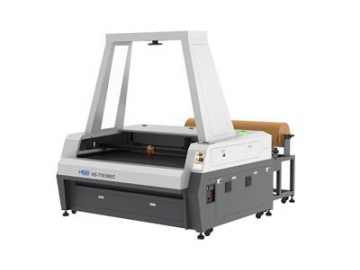

- An optional installation of a panoramic camera automatically achieves typesetting and saves materials.
-
