Rigid Box Wrapping Machine, LY-800A
Semi-automatic rigid box forming machine for making wrapped rigid boxes
The LY-800A rigid box wrapping machine is a cutting-edge piece of paper box making equipment that utilizes advanced technology like PLC programming, and user-friendly components such as a touch screen interface and automatic fault detection and shut-off functions.

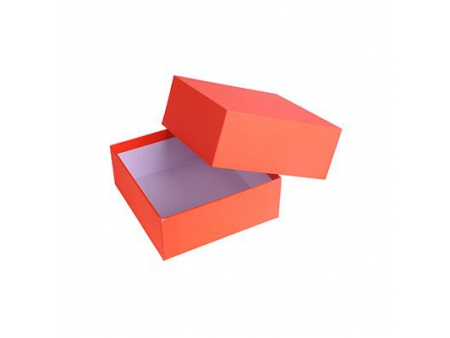

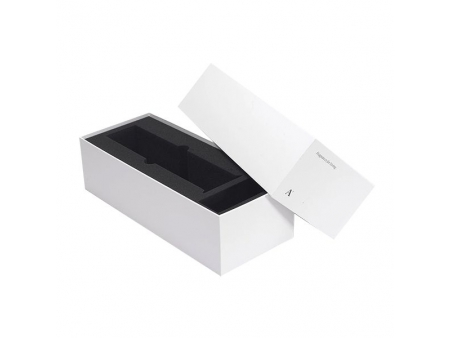

Sample BoxesThis rigid box wrapping machine sets itself apart from traditional ones by eliminating the need to change the pressure plate or blade during operation. Instead, the operator simply inputs the desired product size, and the wrapping machine automatically adjusts the mold with precision and accuracy. This saves time and minimizes errors, resulting in a lower failure rate.

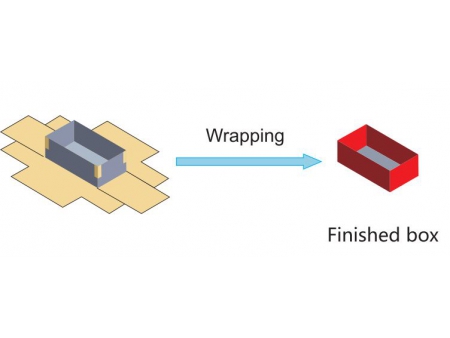

In addition, the LY-800A rigid box wrapping machine can perform various continuous operations, such as edge wrapping, flap folding, forming, and pressing bubbles. This makes it an ideal choice for producing a wide range of box shapes, including gift boxes, packaging boxes, phone boxes, shoe boxes, and other special boxes.
All control components used in this paper box forming machine are of high quality, sourced from trusted international brands, ensuring low failure rates and optimal precision throughout the entire production process.
Features- Intelligent mold switching ensures fast manufacturing speed.
- The rigid box wrapping machine is highly automated as it is controlled by PLC.
- Automatic troubleshooting and error detection allow for solving problem in time.
- User-friendliness saves labor cost.
- The paper box machine comes in small size, not only facilitating you to operate in limited space but also reduce the manufacturing cost.
| Product Model | LY-800A |
| Voltage | 220 V |
| Max. Box Dimension | 550 mm*400 mm*120 mm |
| Min. Box Dimension | 80 mm*70 mm*15 mm |
| Manufacturing Speed | 15-25 pcs/min |
| Power | 2.1 kW |
| Weight | 1100 KG |
| Overall Size | 1500 mm*1300 mm*2200 mm |
