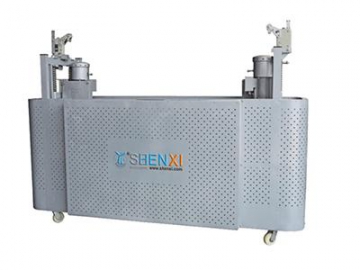

- SXD-250 BMU Gondola
- Platform for Elevator Installation

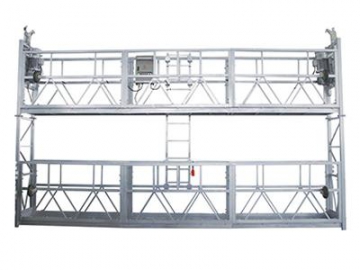

- Double Deck Platform
- L Leg Suspended Platform
- L Leg Single Person Platform

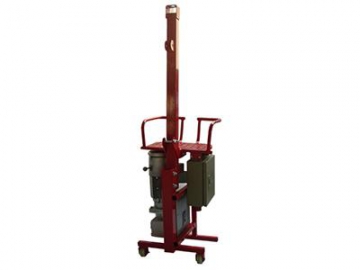

- Single Person Suspended Chair
L Leg Suspended Platform Introduction:
The ZLP350 L leg suspended platform is one of our bestselling pieces of equipment and it is CE certified and Israel SII approved. The L Leg suspended platform has been widely praised by our many Israeli customers and it features a maximum length of 16m for the aluminum type platform.

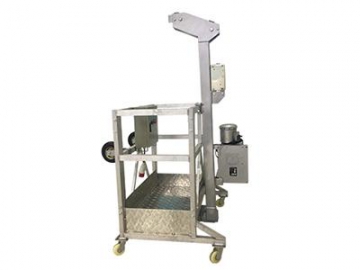

L leg single suspended platform has option for 1.2m, 1.5m and 2m platform, with 250kg capacity, it is easy to install and move. Components can be used and replaced with ZLP350 L suspended platform, with a maximum length of 16m for the aluminum reinforcing type platform.
Technical Parameters of ZLP350 L Leg Suspended Platform
| Platform Length (m) | Platform Combination (m) | Equipment Self-weight (kg) | Max Capacity (kg) |
| 2 | 2 | 575 | 450 |
| 3 | 1.5 1.5 | 620 | 500 |
| 4 | 2 2 | 665 | 550 |
| 5 | 2.5 2.5 | 710 | 650 |
| 6 | 2 2 2 | 755 | 800 |
| 7 | 2.5 2 2.5 | 800 | 800 |
| 7.5 | 2.5 2.5 2.5 | 825 | 775 |
| 8 | 2 2 2 2 | 845 | 700 |
| 9 | 2 2.5 2.5 2 | 890 | 650 |
| 10 | 2.5 2.5 2.5 2.5 | 935 | 600 |
| 11 | 2 2.5 2 2.5 2 | 980 | 550 |
| 12 | 2.5 2.5 2 2.5 2.5 | 1025 | 500 |
