YJF 62 C-Frame Shaded Pole Motor Manufacturer

YJF 62 C-Frame Shaded Pole Motor

Request a Quote

View All: http://ecmotorsfactory.com/2-6-yj-62-c-frame-shaded-pole-motor.html

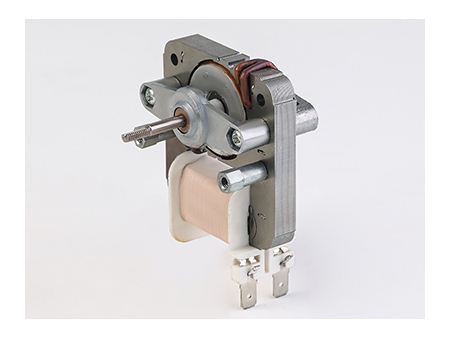

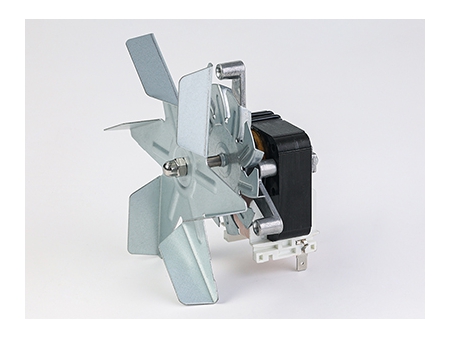

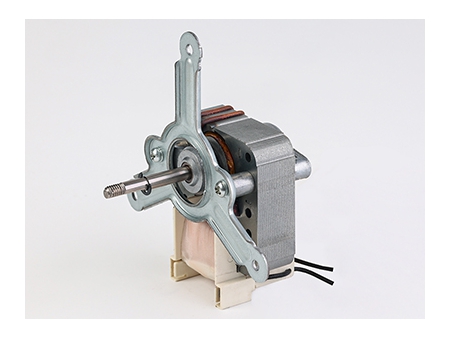

YJF 62 C-frame shaded pole motor is a 2 pole 3 speed motor that will run on 100-120V AC, 220-240V AC or 127/230V AC. It is widely used in ovens, fans water purifiers, air coolers, etc.

We also offer custom services like motor design and construction, optional configuration and logo printing.

Diagram

Certifications

Application

YJF62 shaded pole motor is widely used in a variety of devices, such as oven, air fryer, microwave, fireplace, dehumidifier, medical facility, water treatment equipment, heater fan, air purifier, etc.

Parameters

Type	Voltage/Freq. VAC	Current A	Power W	Speed r/min	Rotation	Shaft dia mm	Stator Thickness (T) mm	Shaft Extension (B) mm	Certificate
YJF62-09	220-240VAC 50Hz	≤0.18	≤20	≤2800	CW/CCW	3.17/4/4.6/5/6	9	< 68
YJF62-09	110-120VAC 60Hz	≤0.36	≤20	≤3400	CW/CCW	3.17/4/4.6/5/6	9	< 68
YJF62-12	220-240VAC 50Hz	≤0.20	≤25	≤2850	CW/CCW	3.17/4/4.6/5/6	12	< 68
	110-120VAC 60Hz	≤0.40	≤25	≤3500
	230/127V 50/60Hz	≤0.40	≤25	≤3500
YJF62-16	220-240VAC 50Hz	≤0.22	≤30	≤2900	CW/CCW	3.17/4/4.6/5/6	16	< 68
	110-120VAC 60Hz	≤0.40	≤30	≤3550
	230/127V 50/60Hz	≤0.40	≤30	≤3550
	12V 50Hz	≤2.20	≤30	≤2900
YJF62-20	220-240VAC 50Hz	≤0.25	≤35	≤2950	CW/CCW	3.17/4/4.6/5/6	20	< 68
	110-120VAC 60Hz	≤0.50	≤35	≤3570
	230/127V 50/60Hz	≤0.50	≤35	≤3570
	12V 50Hz	≤2.30	≤35	≤2950
YJF62-25	220-240VAC 50Hz	≤0.30	≤40	≤2950	CW/CCW	3.17/4/4.6/5/6	25	< 68
	110-120VAC 60Hz	≤0.60	≤40	≤3580
	230/127V 50/60Hz	≤0.60	≤40	≤3580
