Jail TV

Request a Quote

View All: http://lcddisplaysolution.com/2-7-clear-prison-lcd-tv-professional-display.html

Description

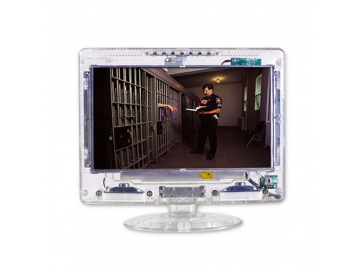

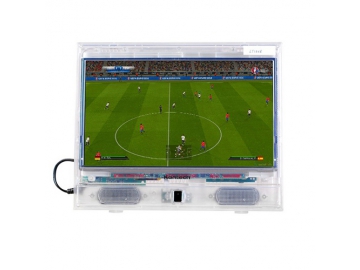

The clear Jail TV satisfies prison safety standards in every country as it has been specially designed for prisons.
We can provide customized services to satisfy the different requirements of governments.
The reinforced signal receiving system in the clear Jail TV will ensure to work normally in prisons where signals can be weak.

Application
The clear Jail TV is mainly used in prisons.

Parameters

Jail TV
Version	PT13	PT16	PT19	PT22
Applied scenes	Prison
LCD panel
Size	13 inches	16 inches	18.5 inches	21.5 inches
Display area	293mm*165mm	344mm*193mm	409.7mm*230mm	476.6mm*268.3mm
Display scale	16*9
Luminance	200nits
Image resolution	1920*1080
Contrast ratio	800*1
View angle	160/160
Response time	30ms
Service life	15000h
Frame
Material	Plastic
Color	transparent
Dimension of frames	Left and right: 23mm, top: 31mm, bottom:67mm	Left and right: 24mm, top: 29mm, bottom:67mm	Left and right: 25.5mm, top: 25.7mm, bottom:41.8mm	Left and right: 24.1mm, top: 24.7mm, bottom:43.4mm
Dimension of bare machine	334126310mm	394126328mm	460.7339.439.8mm	50552311mm
Weight of bare machine	1.3kg	1.6kg	2.6kg	TBD
Assembling method	Desktop
Primary hardware index
Simulative television system	PAL/SECAM/NTSC
Digital television system	ATSC/DVB-T2/DVB-S2/ISDB-T/BS/CS
Inbuilt DVD	Optional accessories
Special functions of software
1. The USB connectors can only be used for software upgrade, without power supply function.
Menu language
OSD language	Chinese, English, Spanish, Portuguese, Japanese, etc
Electrical Specifications
Power supply mode	DC
Power supply	110-240V AC
Working environment
Working temperature	0℃~55℃
Working humidity	10%~90%
Storing temperature	-20℃~65℃
Other parameters
Accessories	Transparent remote control, transparent headset(optional), adapter, warranty card, instruction book, etc.
Packaging material	Carton and pearl wool
Packaging dimension	403138350mm	462145365mm	535160386mm	584110400mm
rough weight	1.9kg	2.5kg	3.6kg	TBD
Container number	1344/2784/3248	1152/2400/2800	1200	900/1800/2160

Characteristics of Jail TV

The large touchtone is easy to operate.
The product is equipped front speakers, and the headset hole is located at a neutral position.
Safety set screws are used in installation.
The inbuilt DVD decoding function enables users to watch DVDs freely.
Transparent shell and transparent remote control: in view of the security of prisons, there is no prohibited component in this TV according to prison stipulations.
This product is equipped with transparent power lines and transparent headsets.
Additional functions: FM radio and Clock.
This product satisfies all prison safety standards.

Optional accessories

Power Line

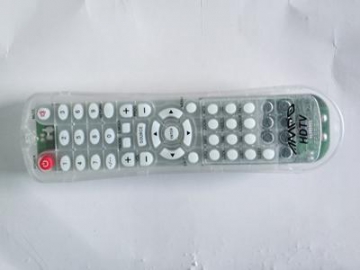

Transparent Remote Control

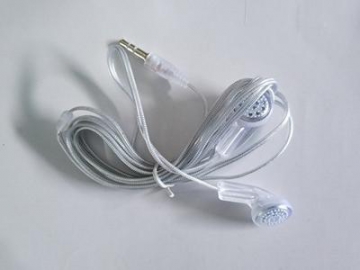

Transparent Headset

Assembling method
Desktop

We can provide customized service to satisfy the different requirements of governments.
