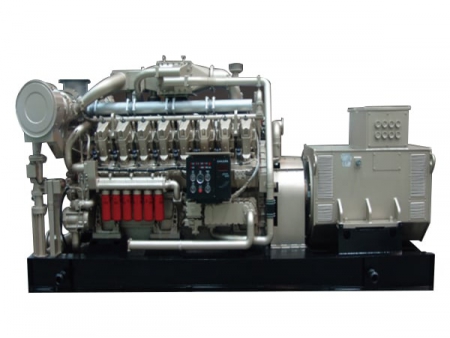

6000 Natural Gas Generator (1100-1500KW)
Request a Quote
As our self-developed high-power natural gas generator, 6000 natural gas generator has maximum standby rating of 1500kW, which can be used in air compressor and gas generator set to address rising demand of power generation equipment for standby and prime power systems.
Click Here to
Features of 6000 Natural Gas Generator (1100-1500KW)
- Mainstream control technology(EGS02 engine intelligent management system)
- Advanted air-fuel ratio control technology(TEJCT air-fuel ratio automatic adjustmen)
- High flow and high pressure intake system adapts to wider concentration changes
- Low -pressure air intake and lean combustion control technology for lower pressure gas and better emissions
- Advanced unit management module(IG-NT atuomatic synchronization and automatic load distribution)
- Online maintainance technology (more than 2500 hours of continuous trouble free operation)
- Digital monitoring techbology(full monitoring of engine thermal parameters and unit electrical parameters)
- Distributed energy system(Electric-Thermal, Electric-Hot-Cool)
Technical parameters
| Generating set model | 1100GF-T | 1200GF-T | 1500GF-T |
| Alternator model | 1FC series, Siemens technology, brushless excitation, automatic voltage control | ||
| Panel model | GP1100 | GPL1200 | GPL1500 |
| Rated power (kW) | 1100 | 1200 | 1500 |
| Rated voltage (V) | 480V (400/6300/10500/13800) | ||
| Rated frequency(Hz) | 50/60 (optional) | ||
| Rated power factor | 0.8 | ||
| Type of wiring | Three-phase four-wire, star connection | ||
| Protection class | IP23 | ||
| Insulation class | H | ||
| Stabilized voltage regulation | ≤±2.5% | ||
| Transient voltage regulation | ≤ 20%（-15） | ||
| Voltage stabilization time | ≤1.5 s | ||
| Fluctuation of voltage | ≤1.0% | ||
| Stabilized frequency regulation | 0～5% | ||
| Instantaneous frequency regulation | ≤±10% | ||
| Frequency stabilization time | ≤7 s | ||
| Fluctuation rate of frequency | ≤0.5% | ||
| Overall dimension (mm) | 6660×2335×2520 | 7175×2516×2540 | 7260×2516×2540 |
| Weight kg | 19800 | 23000 | 24000 |
| Engine model | H16V190ZLT-2 | H16V190ZLT2-2 | H16V190ZLT-1 |
| Type | Four-stroke, V-shaped, turbocharged, inlet air cooling, spark ignition,external-mixing electronic control | ||
| Number of cylinder | 16 | ||
| Bore (mm) | 190 | ||
| Stroke (mm) | 215 | ||
| Total displacement (L) | 97.53 | ||
| Rated speed (r/min) | 1000 | 1200 | |
| Rated power (kw) | 1200 | 1300 | 1600 |
| Idle speed | 700r/min | ||
| Gas pressure | 100~400 KPa | ||
| Gas consumption | ≤9500kJ/kW·h | ||
| Oil consumption | ≤0.6g/kW·h | ||
| Exhaust temperature(before turbocharged) | ≤650℃ | ||
| Heat water temperature | < 85℃ | ||
| Intercooling water tem. | < 45℃ | ||
| Oil temperature | < 90℃ | ||
| Speed regulation rate | 0～5 % | ||
| Type of cooling | Water cooling, open type with cooling tower, close type with vertical radiator or horizontal radiator | ||
| Lubrication method | Press and spray lubrication | ||
| Starting method | Electric starting | ||
| Direction of rotation | Anticlockwise (facing the power output end) | ||
CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
