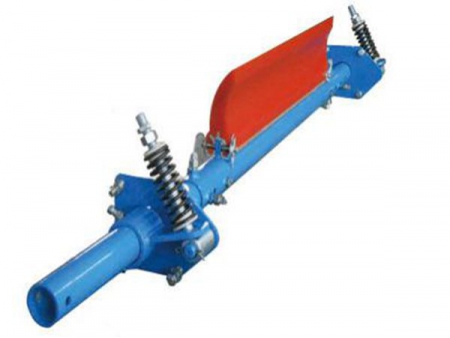

Belt cleaners, or belt scrapers, are an efficient method to remove bulk waste off conveyor belts. As an expert of belt conveyor components, Zoomry provides primary belt cleaners, secondary belt cleaners and empty section cleaners to meet specific application requirements. The primary belt cleaner is also known as pre-cleaner, placed at the head pulley where the materials discharge. The secondary belt cleaner is located underneath the head pulley to scrape materials that may pass the primary cleaner. The empty section cleaner is mounted at the tail of the belt conveyor.

Features

Automatic tensioning device maintains proper cleaning pressure, achieving long-term maintenance-free operation;
Integrated scraper structure delivers more efficient cleaning;

Materials

Carbon steel frame with polyurethane belt scraper blade or tungsten carbide belt scraper blade

Polyurethane scraper blade: fabricated with polyurethane composite material through molding process, the polyurethane blade has features of smooth surface, low friction, good wear resistance and high strength. It can efficiently remove fine particles and sticky materials from a conveyor belt.

Tungsten carbide scraper blade: there are two types of tungsten carbide blades, i.e. single-piece and double-piece mounting plate. By simply adjusting pressure, the belt scraper can provide superior cleaning efficiency.

Specifications

Model	Belt width	Scraper width
QSY80	800	650
QSY100	1000	850
QSY120	1200	1050
QSY140	1400	1250
QSY160	1600	1450
QSY180	1800	1650
QSY200	2000	1850
QSY220	2200	2050
QSE80	800	900
QSE100	1000	1050
QSE120	1200	1200
QSE140	1400	1500
QSE160	1600	1650
QSE180	1800	1800
QSE200	2000	2100
QSE220	2200	2250
QSV80	800	1400
QSV100	1000	1600
QSV120	1200	1850
QSV140	1400	2050
QSV160	1600	2310
QSV180	1800	2540
QSV200	2000	2720
