Plastic Electric Ball Valves
Request a Quote
The valve body uses PPO material with an IP65 protective grade, allowing it to work great in humid environments. The valve core uses ceramics that are wear resistant and feature a service life of more than 100,000 uses. These plastic electric ball valves are suitable for controlling an array of media, including water, air, oil, acid and alkali corrosive mediums, and low viscosity fluids in the chemical industry.
There are two types available: plastic two way electric ball valves and plastic three way electric ball valves.
Performance ParametersOperating pressure: 0-1.6MPa
Operating temperature: 0-60℃
Material for valve stem: PPO/PPH/UPVC（Harley alloy steel B or C is available upon request.)
Seals material: EPDM or Fluororubber(optional)
Protection class: IP65

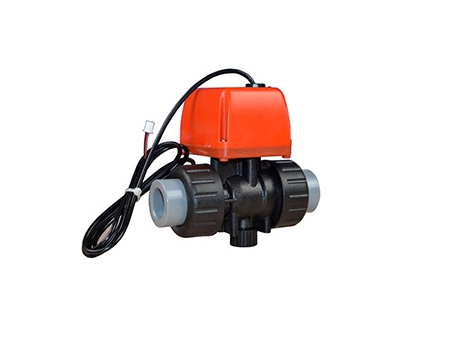

Plastic Two-Way Electric Ball Valves through threaded joint
| Plastic Two-Way Electric Ball Valves through threaded joint. | Model | Nominal diameter | Wiring type | Open/close time | Input Voltage | Motor power | Actual Power |
| Q911713-15/20 Q911013-25 | DN15 thread size: G1/2 glue socket: φ20.2 DN20 thread size: G3/4 glue socket: φ25.2 DN25 thread size: G1 glue socket: φ32.2 | 2 wires●positive and negative connection | 12.5s/3s | DC6V/12V/ 24V | 2W-4W | 0.4W-2.5W | |
| Q911712B-15/20Q911012B-25 | 2 wires● auto return | 12.5s/3s | DC9V-24V | ||||
| Q911712B1-15/20 Q911012B1-25 | 3 wires● auto return | 12.5s/3s | DC12V-24V | ||||
| Q911713C-15/20 Q911013C-25 | 3 wires common line | 12.5s/3s | DC6V/12V/ 24V | ||||
| Q911715C-15/20 Q911015C-25 | 3 wires●AC220V | 12.5s | AC220V | 6W | 0.4W-2.5W | ||
| QQ911713D-15/20 QQ911013D-25 | 5 wires●position feedback | 3s | DC24V | 4W | 0.4W-2.5W | ||
| Q911013-32(40/50) | DN32 thread size: G1/4 glue socket: φ40.2 DN40 thread size: G1/2 glue socket: φ50.5 DN50 thread size: G2 glue socket: φ63.2 | 2 wires● positive and negative connection | 7.5s | DC12V-24V | 6W | 2W | |
| Q911013C-32(40/50) | 3-wire common line | 7.5s | DC12V-24V | ||||
| Q911013D-32(40/50) | 5 wires●position feedback | 7.5s | DC24V | ||||
| Q911015E-32(40/50) | 6 wires●signal feedback | 12s | AC220V | DN40：11W DN50：14W | DN32:1W DN40: 3W DN50:3.5W |
Plastic Two-Way Electric Ball Valves jointed by glue (Nominal Diameter: 47mm/58mm)
| Plastic 2-way electric ball valve with glue connection(with size of 47mm/58mm) | Nominal diameter | Wiring type | Open/close time | Input voltage | Motor power | Actual power |
| Q931513D-65 | 5 wires●signal feedback DC24V | 15s | DC24V | 45W | 8.5W | |
| Q931515E-65 | 6 wires●signal feedback AC220V | 15s | AC220V | |||
| Q931513D-80 | 5 wires●signal feedback DC24V | 15s | DC24V | 45W | 10.5W | |
| Q931515E-80 | 6 wires●signal feedback AC220V | 15s | AC220V |

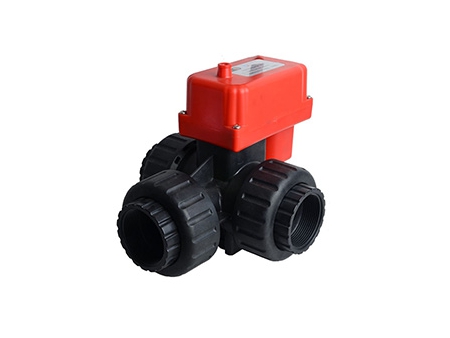

Plastic Three-Way Electric Ball Valves jointed by thread
| Nominal diameter | Wiring type | Model | Open/close time | Input voltage | Motor power | Actual power |
| DN25/ DN32/ DN40/ DN50 | 2 wires●positive and negative connection | Q914013-25(32/40/50) | 7.5s | DN25/32/40: DC12V/24V DN50: DC24V | DN25 /32:6W DN40: 10W DN50: 16W | DN25 /32: 2W DN40: 5W DN50: 6W |
| 3 wires●common | Q914013C-25(32/40/50) | 7.5s | DN25/32/40:DC12V/24V DN50: DC24V | |||
| 5 wires●position feedback | Q914031D-25(32/40/50) | 7.5s | DC24V | |||
| 6 wires●position feedback | Q914015E-25(32/40/50) | 7.5s | AC220V | DN25 /32:11W DN40: 11W DN50: 14W | DN25 /32:1W DN40: 3W DN50: 3.5W |
Plastic Three-Way Electric Ball Valves jointed by glue(Nominal Diameter: 21.5mm-37.7mm)
Application | Nominal diameter | Wiring type | Model | Open/close time（ | Input voltage | Motor power | Actual power |
| DN25 21.5mm | 2 wires●positive and negative connection | Q934013-25 | 7.5S | DC12V/24V | 6W | 2W |
| 3 wires●common | Q934013C-25 | 7.5S | DC12V/24V | |||
| 5 wires●position feedback DC24V | Q934013D-25 | 7.5S | DC24V | |||
| 6 wires●position feedback AC220 | Q934015E-25 | 12s | AC229V | 11W | 1W | |
| DN32 21.5mm | 2 wires●positive and negative connection | Q934013-32 | 7.5S | DC12V/24V | 6W | 2W |
| 3 wires●common | Q934013C-32 | 7.5S | DC12V/24V | |||
| 5 wires●position feedback DC24V | Q934013D-32 | 7.5S | DC24V | |||
| 6 wires●position feedback AC220 | Q934015E-32 | 12s | AC229V | 11W | 1W | |
| DN40 29mm | 2 wires●positive and negative connection | Q934013-40 | 7.5S | DC12V/24V | 10W | 5W |
| 3 wires●common | Q934013C-40 | 7.5S | DC12V/24V | |||
| 5 wires●position feedback DC24V | Q934013D-40 | 7.5S | DC24V | |||
| 6 wires●position feedback AC220 | Q934015E-40 | 12s | AC229V | 11W | 3W | |
| DN50 37.7mm | 2 wires●positive and negative connection | Q934013-50 | 7.5S | DC12V/24V | 16W | 6W |
| 3 wires●common | Q934013C-50 | 7.5S | DC12V/24V | |||
| 5 wires●position feedback DC24V | Q934013D-50 | 7.5S | DC24V | |||
| 6 wires●position feedback AC220 | Q934015E-50 | 12s | AC229V | 14W | 3.5W | |
| Product name | 3-way electric ball valve(ceramic core) | Working temperature | 0--60℃ (EPDM seal) | |||
| Valve body material | reinforced PPO (acid and alkali resistance) | 0--60℃ (FKM seal) | ||||
| Working pressure | 0-1.0MPa(0-10kg) | Ball valve size | Reduced bore ball valve(21.5mm-37.7mm) | |||
| Ball valve structure | 3-way floating ball valve(hard-seal ball valve) | Valve stem material | 316L as the default option; optional: Hastelloy B or Hastelloy B | |||
| Suitable fluid | Water, oil, acid or alkali corrosive media and low viscosity fluid in chemical industry(protection class: IP65) | |||||
Electronic ball valve used in reverse osmosis equipment
Require that the system doesn’t produce water hammer or vibration. The ball valve must meet stringent standards for stability.
