Carton Folding Gluing Creasing Line 1450 type Folder Gluer Machine
High Speed Carton Equipment Manufacturer
Description
The carton folding gluing creasing line’s 1450 type folder gluer machine features a machining speed of 400 m/min and a maximum blank width of 1450mm. It is a perfect solution to the production of 800 g/m² boxes like straight-line boxes, crash-lock bottom boxes, double-wall boxes, 4 and 6 corners boxes and other box types.
In addition, this folder-gluer features an excellent memory function, and requires no repetitive set up for reproducing parts, which saves time. The electronic carrier is equipped with a high precision linear guideway, allowing this equipment to be used in heavy duty and medium sized packaging companies.
Application
The MEGAFOLD 1450 – C without pre-folding function is suitable for straight-line boxes.
The MEGAFOLD 1450 – AC without pre-folding function is used to produce straight-line boxes, crash-lock bottom boxes, double-wall boxes and other box types.
The MEGAFOLD 1450 – PC is used to manufacture straight-line boxes, crash-lock bottom boxes, double-wall boxes and other box types.
MEGAFOLD 1450-SL is ideal for straight-line boxes, crash-lock bottom boxes, double-wall boxes, 4 and 6 corners boxes and other box types.
Produced box type- Straight-line box A: 290 - 1450 mm
B: 250 - 1200 mm
E: 135 - 715 mm - crash-lock bottom box A: 290 - 1360 mm
B: 300 - 1200 mm
E: 135 - 665 mm - double-wall box A: 290 - 1450 mm
B: 200 - 1200 mm
D: 50 - 200 mm
E: 135 - 1250 mm - 4-corner box A: 230 - 1450 mm
B: 220 - 1200 mm
H: 35 - 150 mm - 4-corner box with lid A: 350 - 1300 mm
B: 220 - 1200 mm
H: 35 - 150 mm - 6-corner box A: 350 - 1300 mm
B: 220 - 1200 mm
H: 35 - 150 mm

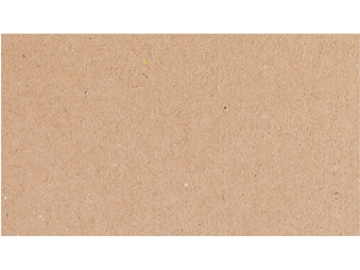

- Carton board

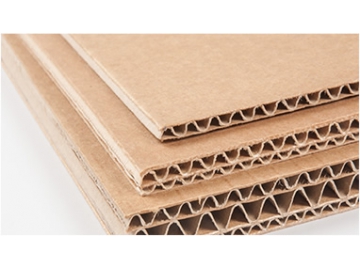

- Corrugated board
Processed materials
| Max. Carton board | 800 g/m² |
| Corrugated flute type | E, C, B, AB, 3-layer or 5-layer |
| Max. speed | 400 m/min |
| Inching speed | 20 m/min |
| Max. Thickness of folded box | 20 mm |
| Max. Blank width | 290-1450 mm |
| Total press conveyor length | 6.5 m |
| Effective press conveying length | 4 m |
| Upper conveyor belt width | 34mm |
| Lower conveyor belt width | 50mm |
| Outer belt width | 100mm |
| Item | C | AC | PC | SL |
| Length | 17.4 m | 19.4 m | 22.4 m | 22.4 m |
| Width | 2.2 m | 2.2 m | 2.2 m | 2.2 m |
| Height | 1.7 m | 1.7 m | 1.7 m | 1.7 m |
| Weight | 12 Ton | 13.5 Ton | 14.5 Ton | 14.8 Ton |
| Item | C | AC | PC | SL |
| Electrical connected load | 40 kW | 45 kW | 50 kW | 56 kW |
| Compressed air | 6 bar | 6 bar | 6 bar | 6 bar |
| Air compressor capacity | 30 m³/h | 30 m³/h | 30 m³/h | 30 m³/h |
| Air tank capacity | 155 L | 155 L | 155 L | 155 L |
- Feeder section
- Side register table
- Pre-folding section
- Lock bottom section
- Gluing unit
- Folding and closing section
- Trombone section
- Squaring device in transfer section
- Press section
- Back-folding device
- Creasing device
