Corrosion Resistant Silicon Carbide Heat Exchanger

Request a Quote

View All: http://glasslined-equip.com/5-4-corrosion-resistant-silicon-carbide-heat-exchanger.html

SiC Heat Exchanger

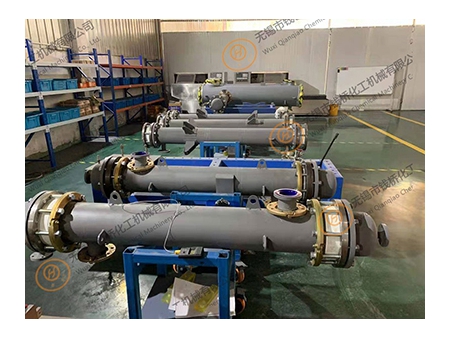

This silicon carbide heat exchanger composes of corrosion-resistant plates and silicon carbide tubes, fit for corrosive processing. The heating of the shell and tube silicon carbide heat exchanger is realized by the heat exchange tube made from corrosion-resistant silicon carbide, which is the first choice as a medium for cooling and condensing chemical corrosive process.

Typical Applications

Bromine, sulphuric acid, hydrofluoric acid, nitric acid, hydrochloric acid and so on;

Bases;

Halogenated compounds;

Saline solution;

Organic compounds

Technical Data

Test every heat exchange tube under the pressure of 185 Bar before installation;
The diameter range of the heat exchanger’s shell is DN100 to DN 600;
The standard length of the heat exchange tube is 1000 mm to 4000mm;
The heat exchange area is 0.32 to 58 square meters;
The diameter of the heat exchange tube is 36mm;
Horizontal or vertical installation;
Temperature range is -19℃ to 240℃;
Pressure range is -0.1MPa to 0.6MPa;
Meet the standards of CE, ATEX, and FDA.

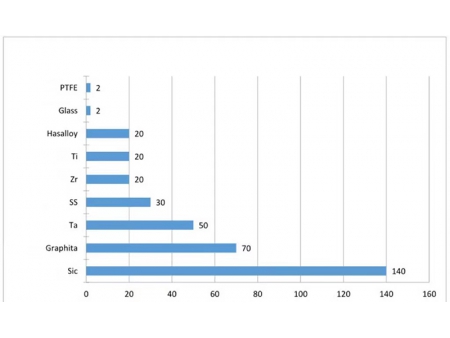

Comparison Chart of Thermal Conductivity

Silicon carbide corrosion performance
Testing Environment Conc. Reagent	Corrosive Weight Loss		(mg/cm²yr)
(Wt%)	Temperature (C)	Pressureless-sintered Silicon Carbide No Free SiC)	Reaction-bonded Silicon Carbide 12% SiC)
98% H2SO4	100	1.8	55
50% NaOH	100	2.6	>1000
53% HF	25	< 0.2	7.9
85% H3PO4	100	< 0.2	8.8
70% HNO3	100	< 0.2	0.5
45% KOH	100	< 0.2	>1000
25% HCI	70	< 0.2	0.9
10% HF plus 57% HNO3	25	< 0.2	>1000
Qianqiao produces every SiC heat exchanger with pressureless-sintered silicon carbide **
