ZDS Spur Gear Planetary Gearbox
Request a Quote
Specifications

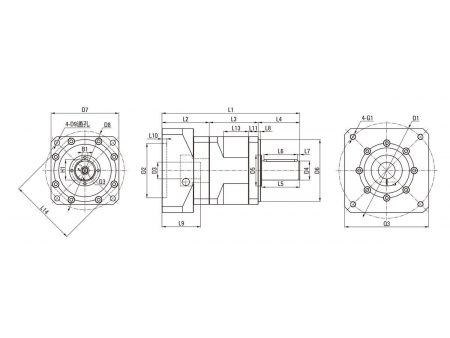

Unit: mm
| Model | | | | |||
| Number of Stage | 1 | 2 | 1 | 2 | 1 | 2 |
| Overall Length L1 | 213 | 246.5 | 288.5 | 331.5 | 316.5 | 364.5 |
| Body Length L3 | 77.5 | 111 | 102.5 | 145.5 | 121.5 | 169 |
| Output | ||||||
| Shaft Length from Output L4 | 64.5 | 87 | 90 | |||
| Shaft Length from Spigot L5 | 58 | 80 | 82 | |||
| Key Length L6 | 50 | 70 | 70 | |||
| Distance from Shaft End L7 | 4 | 5 | 6 | |||
| Spigot Length L8 | 4 | 5 | 6 | |||
| Input | ||||||
| Motor Flange Length L2 | 71 | 100 | 105 | |||
| Motor Shaft Length L9 | 58 | 79 | 82 | |||
| Motor Location Depth L10 | 10 | 10 | 8 | |||
