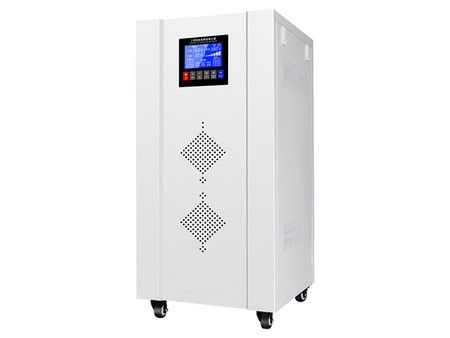

AC Voltage Stabilizer

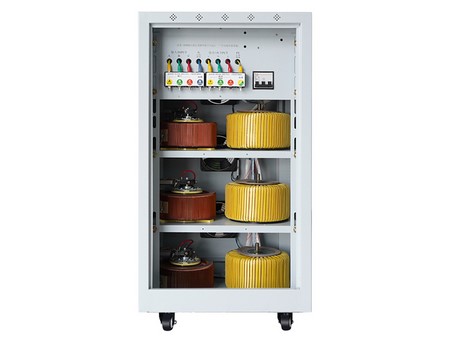

AC voltage stabilizer is composed of a voltage regulator, control circuit, and servo motor. When the input voltage or load changes, the control circuit samples, compares, amplifies, and then drives the servo motor to rotate, changing the position of the voltage regulator's carbon brush. By automatically adjusting the turns ratio of the coil, the output voltage stability is maintained.
- Overvoltage Protection
When the output voltage exceeds 10% of the rated voltage, the output power will be cut off after a delay of 3-5 seconds.
- Short Circuit Protection
When the load equipment is short-circuited, the input power will be cut off.
- Overcurrent Protection
When the load exceeds the rated output current, the output power will be cut off.
- Phase Loss Protection
When any one of the three-phase powers in the input power grid is lost, the voltage stabilizer will automatically disconnect to protect the equipment.
- Installation Location
Indoor
- Altitude
Altitude does not exceed 1500m
- Ambient Temperature
-15℃~40℃
| Model | TNS6-40KVA |
| Rated capacity | 40kVA |
| Input voltage | Three phase 200-450V |
| Output voltage | Three phase 220V±1%-3% The output voltage accuracy can be set |
| Output waveform | Sine wave, no additional waveform loss |
| Setting function | Output voltage accuracy, over-voltage protection, under-voltage protection, over-temperature protection, overload protection can be set by the panel keys |
| Protection function | With over-voltage, lack of phase detection, over-temperature, overload protection and under-voltage warm function, short circuit protection |
| Overvoltage protection value | Output voltage 430V±4V |
| Under voltage protection value | Output voltage 320V±4V, regularly not set under voltage protection |
| Load power factor | 0.8 |
| Adjusting time | When the voltage changes by10% < 1S |
| Waveform distortion | No additional waveform distortion |
| Dielectric strength | 1500V/1min |
| Insulation resistance | Three phase >2MΩ |
| Dimensions | 460×422×880mm |
| Package size | 470×505×970mm |
| Insulation level | Class E |
| Working efficiency | ＞95% |
| Working frequency | 50/60HZ |
| Overload capacity | 1 time rated current for 40 seconds |
| Insulation resistance | Three phase >2MΩ |
| Insulation class | Class E |
| Working environment | Temperature :-10℃ to 40℃, Humidity: < 95% |
| Temperature rise | ≤60° |

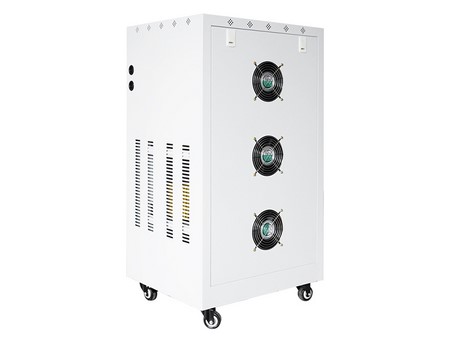

| Cooling method | 3 PCS of fans |
