High Speed Cylindrical Inkjet Printer
YD-K200
(Multi-Pass Printing on Cylindrical & Round Objects with Inkjet Printers)

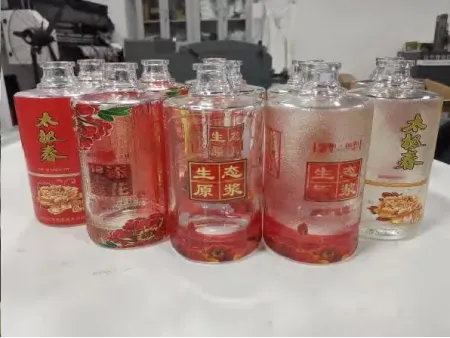

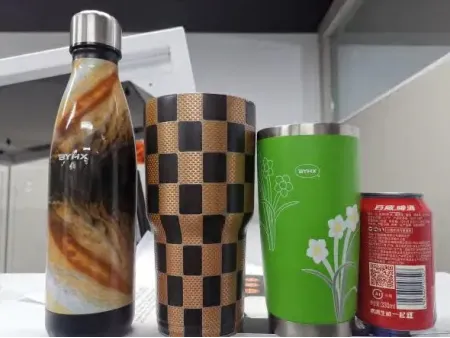

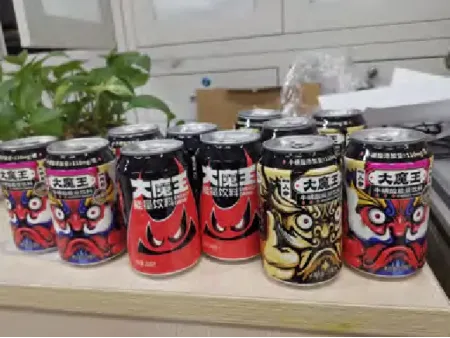

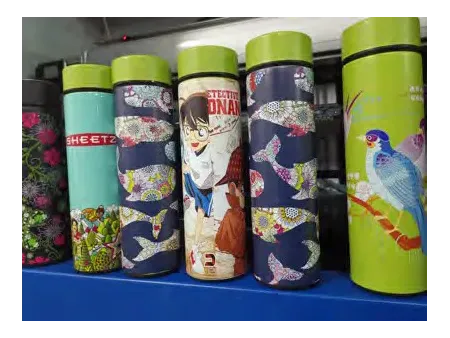

YD-K200 UV high speed cylindrical printer is an industrial-grade color UV inkjet printer that has been specifically engineered to print on cylindrical/conical objects. It is widely used in various industries such as insulated cups, cosmetic packaging bottles, wine bottles, aluminum cans, cups, and other cylindrical/conical-shaped packaging. Compared to traditional printing methods like pad printing, screen printing, and water transfer printing, the printing machine offers several advantages such as no need for plate-making, easy pre-press work, short delivery time, bright colors, on-demand inkjet printing, environmentally-friendly and energy-saving features, low operating costs, small equipment footprint, simple process, and many others. Due to these benefits, it is becoming a popular choice and an inevitable replacement for traditional printing processes.
| Model | YD-K200 |
| Printhead | XAAR \ RICOH \ KONICA and other industrial printheads |
| Print length | 60mm-300mm (standard length for UV LED: 200mm) |
| Print diameter | ⌀40-150mm |
| Max. Resolution | 2400dpi |
| Print version | White, CMYK, Varnish |
| Print mode | CMYK W V |
| Dimensions (LxWxH) | 1390mmx710mmx1710mm |
| Voltage | AC220±10, 50Hz~60Hz |
| Power | 1500W |
| File formats | TIFF, JPG, EPS, Pdf, PNG, AI, PSD |
| Working environment | Temperature: 20℃-28℃, Humidity: 35%-65% |
| Weight | 480kg |
| Print speed | Single-color printing: 15s/pcs (diameter: 60mm, Length: 200mm) |
| Product type | Cylinder or Taper |
| Cone angle | Max. 10 degrees |
| Product type | Cylinder or Taper |
- Four printhead protection devices
This printing equipment is equipped with four protection devices: mechanical collision protection, anti-collision protection for sensors, material detection device, and UV LED leakage detection device. These devices protect the printheads from damage, greatly extending their lifespan and simplifying equipment operation. - Standby function
This cylinder printer has a standby function, which allows the printhead cleaning device to remain active while the machine is in normal shutdown mode. This saves energy and protects the printheads, eliminating the need for continuous overnight flashing to prevent printhead clogging. In an environment of global resource scarcity and national emission control, this equipment is more eco-friendly and energy-saving. - 16-channel printing
This equipment supports the free definition of 16 color channels, allowing for various combinations of colors such as 8 whites, 4 colors, 4 varnishes, or 4 whites, 8 colors, 4 varnishes to meet various personalized printing demands, including 3D embossing. - HMI and PC-based human-machine interaction systems
The printing equipment utilizes both HMI (Human Machine Interface) and PC-based interaction systems, making it easy to control the equipment and set various software functions, simplifying the operation of the equipment. - Support for printing on cylindrical, conical, and irregular cups
This equipment supports printing on various cylindrical and conical objects, as well as irregular cups with a height difference of up to 15mm.
