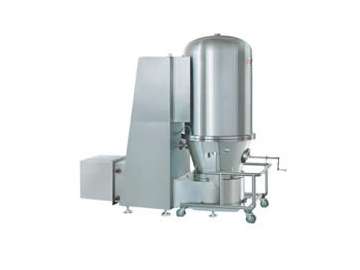

Fluid Bed Dryer
Fluid bed dryer is a desirable product in compliance with the GMP standard, able to deal with such raw materials as large granule in size and small pellets with some adhesion. Due to its high speed mixing, we can use screw roller to extrude and vibrate powder raw materials. Also, our product can serve to dry humidity block or powder in food, chemical, feedstuff and pharmaceutical industries, etc.
Our fluid bed dryer features round structure, convenient to operate and clean, uniform temperature and fast drying speed with the drying time from 20 to 30 minutes each batch. It can work under the situations of filtered air as well as negative pressure and seal. Equipped with a stirrer inside the hopper, our product can effectively form channel of flow without agglomeration of raw materials. Besides, we design the discharging system, so it is extremely convenient and full to turn over for discharging granule.
Specifications| Model | ||||||||
| Raw Material (kg) | 60 | 100 | 120 | 150 | 200 | 300 | 500 | |
| Fan | Air Volume (m³/h) | 2361 | 3488 | 4000 | 4901 | 6032 | 7800 | 10800 |
| Air Pressure (pa) | 5940 | 5330 | 7100 | 6800 | 7800 | 9500 | 9500 | |
| Power (kW) | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 45 | |
| Stirring Power (kW) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | |
| Stirring Speed (rpm) | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| Steam Consumption (kg/h) | 140 | 170 | 210 | 240 | 280 | 360 | 450 | |
| Electrical Heater Power (kW) | 54 | 63 | 63 | 72 | 81 | 99 | 117 | |
| Operation Time (min) | 15-30 | 15-30 | 15-30 | 15-30 | 15-30 | 15-30 | 15-30 | |
| Machine Height (mm) | 2700 | 2900 | 2900 | 2900 | 3300 | 3800 | 4200 | |
We are a specialized fluid bed dryer manufacturer based in China. We offer a variety of products, including three directional movable mixing machine, intermittent/full rotary cutting machine, oscillating granulator, and more.
