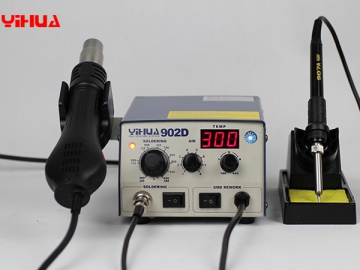

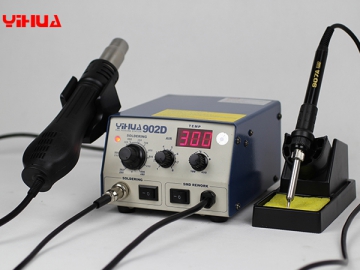

YIHUA-902D Hot Air Rework Station with Soldering Iron
Features
1. YIHUA-902D hot air rework station with soldering iron combines high-grade brushless fan type air gun and qualified soldering iron.
2. Its air gun is available with the service life of 20, 000 hours. It offers a large amount of soft wind. The wind is uniform in speed.
3. The heaters in air gun and soldering iron are made of ceramics. They are durable in use, and ensure temperature stability. Especially, the ceramic heat applied to the soldering iron won’t be twisted off.
4. Moreover, the product is developed to be small, according to the client’s requirement. Its panel of bevel design gives a comfortable feeling.
Parameter
| Machine | ||
| Rated Voltage | AC 220V±10% 50Hz | |
| Machine Power | 700W±10% (Maximum) | |
| Working Environment | 0~40℃ Relative Humidity＜80% | |
| Storage Environment | -20~80℃ Relative Humidity＜80% | |
| Machine Size | 22*28.5*11.5cm | |
| Weight | 2.7KG | |
| Parts | ||
| Item | Hot air gun | Soldering iron |
| Working Voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz |
| Output Power | 650W | 50W |
| Temperature Range | 100℃~450℃ | 200℃~480℃ |
| Airflow Mode | brushless fan | --- |
| Airflow | 120L/min (max.) | --- |
| Temperature Stability | ±15℃(static) | ±10℃ (static) |
| Display | One LED (red/green) | --- |
| Heater | Heating core ceramics heater | Imported high-power heater |
| Tips to Ground Impedance | --- | <2Ω |
| Tips Voltage to Ground | --- | <2mV |
Standard Configuration
Machine: 1set
User manual: 1pc
Air gun handle: 1pc
Nozzles: 3pcs (13mm, 10mm, 8mm)
IC Puller: 1pc
Power Plug: 1pc
