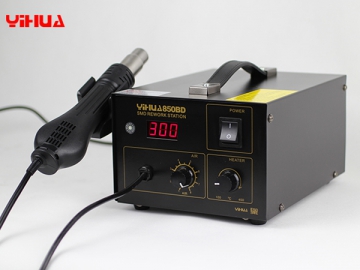

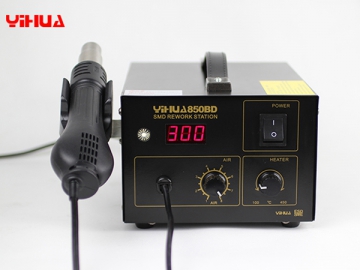

YIHUA-850BD, YIHUA-850B Hot Air Rework Station
Request a Quote
View All: http://yihua-soldering.com
Compared to the YIHUA-850B hot air rework station, YIHUA-850BD type is added with a LED display for accurately temperature control. The LED display allows for convenient operation.
Parameters| Machine | ||
| Operating Voltage | AC 220V±10% 50Hz | |
| Output Power | 650W | |
| Working Condition | 0~40℃ relative humidity＜ 80% | |
| Storage Temperature | -20~80℃ relative humidity＜ 80% | |
| Dimensions | 255*188*125mm | |
| Weight | 2.8KG | |
| Performance | ||
| Item | 850BD | 850B |
| Temperature Range | 100℃~450℃ | 100℃~450℃ |
| Display Mode | LED digital display | --- |
| Air Supply Mode | Brushless fan | Brushless fan |
| Air Volume | 120L/min (Max.) | 120L/min (Max.) |
| Temperature Stability | ±15℃ (static state) | ±15℃ (static state) |
| Heater | Ceramic skeleton heater | Ceramic skeleton heater |
