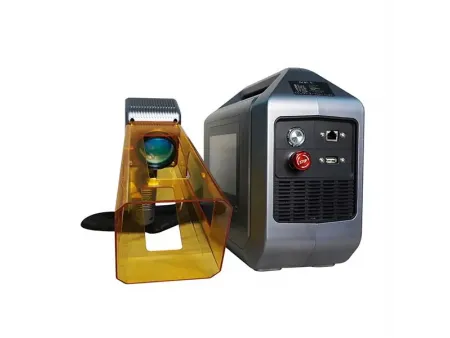

Mini Handheld Fiber Laser Marking Machine
- Laser wavelength: 1064nm
- Marking range: 70×70mm、100×100mm
- Output Power: 20 / 30 / 50W
- Repetition accuracy: 0.01mm
Designed for portability and handheld lightweight use, the entire mini handheld fiber laser marking machine weighs only 6.8kg, allowing for flexible single-hand operation. It is ideal for outdoor industrial scenarios and specifically designed for large-sized objects, featuring one-button touchscreen marking. This machine requires no external power source and offers strong battery life; for example, a 20-watt battery provides up to 11 hours of standby time and 3 hours of continuous operation, meeting the demands for mobile and on-the-spot production!
- Metals: Iron, steel, carbon steel, stainless steel, pure aluminum, aluminum alloy, zinc alloy, titanium alloy, brass, bronze, gold, silver, platinum
- Plastics: ABS, PVC, PE, HDPE
| Laser | Fiber Laser Generator |
| Output Power | 20W, 30W, 50W |
| Marking Range | 70×70mm、100×100mm(Optional) |
| Deflection Seismic Mirror | High-precision Two-dimensional Scanning System |
| Laser Wavelength | 1064nm |
| Focus the Lens | 130mm |
| Marking Speed | Integrated Motherboard, 7-inch Capacitor Fully Bonded to the Screen |
| Operating Software System | BSL System |
| Marking Type of Engraving | Redlett Postionen, Foxin |
| Line Width | 0.03mm |
| Repeatable Positioning Accuracy | 0.01mm |
| Targeting Method | Red Light Positioning, Focusing |
| The Number of Engraved Character Lines | Any Line within the Valid Marking Range |
| Marking Speed | 800 Characters (related to material and printed content) |
| Font | Chinese and English, Numbers, Chinese Traditional and other Standard Fonts |
| File Format | BMP、DXF、HPGL、JPEG、PLT |
| Barcode | CODE39、CODE128、CODE126、QR |
| Power Supply | 110V/220V AC、Lithium(216wh) |
| Power Consumption | 145-250W |
| Operating Temperature | 0-40° |

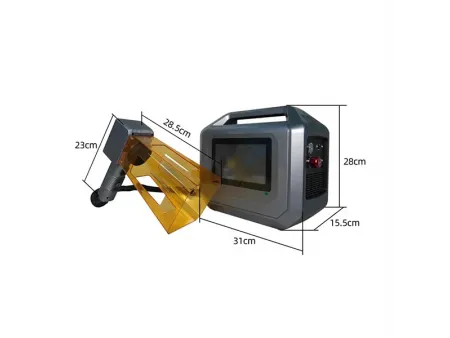

| Total Weight | 6~6.8KG |
Laser source
Features a compact mini fiber laser, reducing the overall footprint of the machine. It offers high pump conversion efficiency, low power consumption, excellent beam quality, and a lifespan of up to 100,000 hours.
Galvo scanner
A 7000mm/s high-speed scanning head, primarily used for laser marking. It is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.
F-theta lens
Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.
Portable handheld marking head
The lightweight design of the handheld marking head is crafted from high-strength engineering plastic and aerospace aluminum, with an overall weight controlled between 0.85-1.25kg. Combined with a non-slip textured rubberized grip and balanced center of gravity design, it prevents fatigue even during prolonged operation.
- Fiber laser
- Handheld marking head
- Galvo scanner
- F-theta lens
- Control card
- Laser power supply
- Power cord
- Safety goggles
- Foot pedal switch
- Aluminum test piece
- Hex key tool set
- Equipment warranty certificate
- Shipping accessories list
- Product catalog
