Concrete Mixer Truck (Foton Chassis)
Request a Quote
The Foton Auman GTL concrete mixer truck is designed to combine strong power, low emissions, and reliable durability with the advantages of stable and rotation and excellent mixing homogeneity, making it a trusted choice for heavy-duty concrete transport in diverse working conditions, including mountainous terrain.
- Capacity 12m³/17T
- Water Tank Capacity 600-1000L
Features
- Equipped with a 350 hp Euro VI engine (Weichai WP8 or Cummins X11 optional), the truck delivers high-performace power output with reduced emissions. The configuration allows it to handle 12 m³ loads with ease.
- Features a Steyr 13-ton rear axle with a 5.73 high-ratio differential, ensuring steady climbing ability and excellent adaptability for demanding conditions.
- Available with a Fast 12-speed manual transmission or ZF AMT automatic transmission. The AMT version offers precise gear shifting and enhanced driving comfort.
- Built with a heavy-duty reinforced chassis for superior durability. The hydraulic system is equipped with Bosch Rexroth or Hydac components, ensuring smooth mixing, high reliability, and reduced downtime.
- The GTL-E wide cab comes with an extended sleeper berth, providing greater comfort during rest periods.
- The truck maintains a compliant unladen weight of 13.7 tons, delivering both efficiency and regulatory alignment.
Specifications
| Vehicle model | | |
| Capacity (m³) | 12 | 12 |
| Vehicle dimensions (mm) | 10050×2550×3998 | 10050×2550×3998 |
| Vehicle weight (kg) | 13700 | 13700 |
| Chassis model | Auman BJ5319GJBY6GRL-01 | Auman BJ5319GJBY6GRL-01 |
| Cab | GTL-E (wide sleeper cab, white) | GTL-E (wide sleeper cab, white) |
| Axle configuration | 8×4 | 8×4 |
| Wheelbase (mm) | 2100 2750 1350 | 2100 2750 1350 |
| Engine model | WP8.350E61A | X11NS6B360 |
| Engine emission standard | Euro VI | Euro VI |
| Engine power (kW/PS) | 257/350 | 257/350 |
| Drive axle | 6.5t front axle, 13t rear axle (Steyr) Ratio: 5.7 | 6.5t front axle, 13t rear axle (Steyr) Ratio: 4.38 |
| Transmission | FAST 12JSD160 (aluminum) | FAST 12JSD160 (aluminum) / ZF automated manual transmission (AMT) |
| Tyre | 11.00R20 18PR | 11.00R20 18PR |
| Reducer | Top Gear/FAST | Top Gear/FAST |
| Hydraulic pump/hydraulic motor | Rexroth/Hytek/Interpump | Rexroth/Hytek/Interpump |
Details Showcase

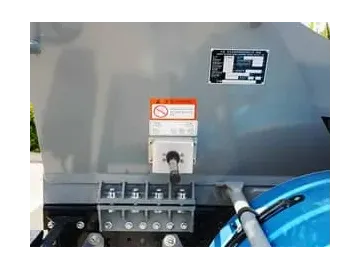

- Hydraulic control lever

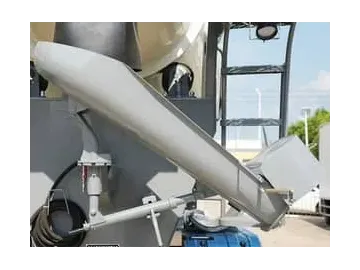

- Discharge system

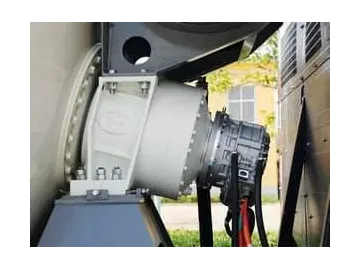

- Mounted motor
- Feeding inlet
- High-pressure connections
