Passenger Elevator
Passenger elevators are equipped with specialized frequency converters that are based on advanced control theory and designed with ergonomic principles. The startup, acceleration, and braking curves are optimized to provide better comfort, making it a true current vector control variable frequency drive system.
FUJI elevators feature an energy-saving permanent magnet synchronous drive system that reduces energy consumption by over 48%. The professional intelligent group control system can simultaneously manage up to 8 elevators. The advanced artificial intelligence and operation database greatly improve operational efficiency, minimizing passenger waiting time to the maximum extent possible.
- Load capacity
450kg, 630kg, 800kg, 1000kg, 1250kg, 1350kg, 1600kg, 1800kg, 2000kg, 2500kg, 3000kg
- Speed
1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s, 2.5m/s, 3.0m/s, 4.0m/s, 6.0m/s
- Stops
2 to 101
- Persons
1 to 40 (up to 3000kg)
- Machine room
small machine room or machine room-less
FUJI passenger elevators offer a diverse range of design options, ideal for hotels, restaurants, office buildings, commercial complexes, entertainment centers, shopping malls, schools, and municipal facilities.
- Features
- Models

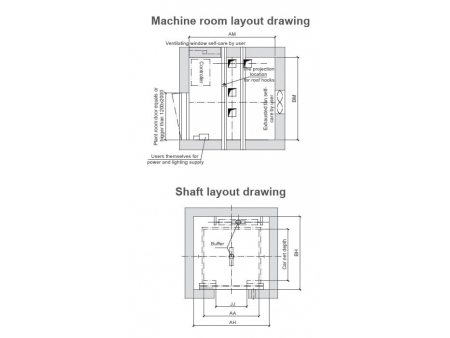

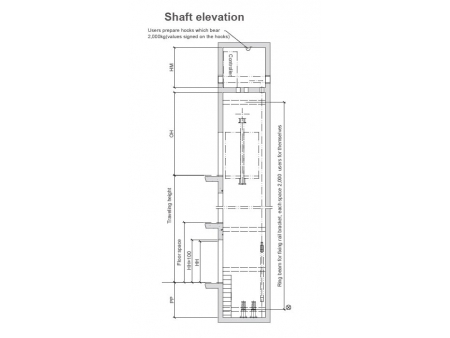

- Dimensions
- FUJI High-Precision Positioning Control System
FUJI passenger elevator system's car displacement tracking technology ensures high-precision and safe leveling between the car and the landing level.
- Panasonic Advanced Door Control System
FUJI passenger elevators employ advanced Panasonic variable frequency and voltage control technology, automatically adjusting the most suitable door opening and closing speeds on each floor to ensure a safe and reliable riding experience for passengers.
- Energy-Saving Technology
FUJI passenger elevators utilize the most advanced control and drive technologies in elevators, minimizing elevator energy consumption to the maximum extent and further reducing elevator maintenance costs, achieving over 30% higher efficiency compared to traditional elevator drive systems.
- Green and Environmentally Friendly Traction System
The compact permanent magnet synchronous PMSM gearless traction machine has a smaller weight and reduces the impact ratio of the machine room in residential construction.
- Compact Control Cabinet
FUJI tailor-made integrated control cabinet for elevators effectively saves space and improves building space utilization.
- Efficient and Energy-Saving Car Lighting
FUJI comprehensively adopts high-efficiency, long-life LED lights, significantly enhancing energy-saving capabilities.
- Digital Intelligent Management
1.Multiple protection and automatic-rescue functions offer comprehensive safety protection measures, fault recording, and fault analysis processing functions.
2.Adopting advanced direct docking technology and sensorless load automatic compensation technology, the elevator operates more smoothly and stops more accurately.
HD-JX12-1A Passenger Elevator
- Ceiling: Hairline stainless steel frame, light strip, LED lighting (HD-DTA14A)
- Rear wall:
Center panel: mirror stainless steel,
auxiliary panel: hairline stainless steel - Side wall/Front wall/Car door: Hairline stainless steel
- Flooring: Standard PVC (optional marble)
HD-JX12-3 Passenger Elevator
- Ceiling: Mirror stainless steel frame, acrylic arched top panel, downlight (HD-DTA04)
- Rear wall:
Center panel: mirror stainless steel,
auxiliary panel: hairline stainless steel - Side wall/Front wall/Car door: Hairline stainless steel
- Flooring: Standard PVC (optional marble)
HD-JX12-4 Passenger Elevator
- Ceiling: Mirror stainless steel frame, acrylic arched top panel, downlight (HD-DTA03)
- Rear wall:
Center panel: mirror stainless steel,
auxiliary panel: hairline stainless steel - Side wall/Front wall/Car door: Hairline stainless steel
- Flooring: Standard PVC (optional marble)
HD-JX05 Passenger Elevator
- Ceiling: Mirror stainless steel frame, acrylic arched top panel, downlight
- Rear wall:
Center panel: mirror stainless steel,
auxiliary panel: hairline stainless steel - Side wall/Front wall/Car door: Hairline stainless steel
- Flooring: Standard PVC (optional marble)
HD-JX61 Passenger Elevator
- Ceiling: Mirror stainless steel frame, acrylic arched top panel, downlight
- Rear wall/Side wall:
Center panel: mirror stainless steel,
auxiliary panel: hairline stainless steel - Front wall/Car door: Hairline stainless steel
- Flooring: Standard PVC (optional marble)
HD-JX67 Passenger Elevator
- Ceiling: Mirror stainless steel frame, acrylic arched top panel, downlight
- Rear wall/Side wall:
Center panel: mirror stainless steel,
auxiliary panel: hairline stainless steel - Front wall/Car door: Hairline stainless steel
- Flooring: Standard PVC (optional marble)

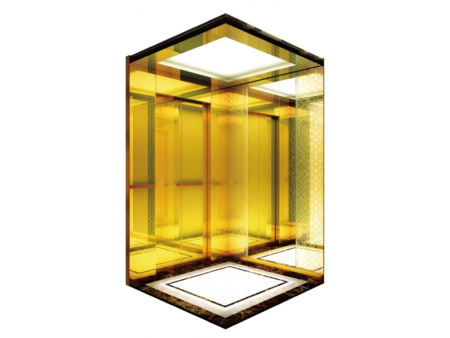

FJ-JXA01 Passenger Elevator
- Ceiling: Titanium gold mirror frame, LED, Titanium gold mirror etched stainless steel
- Rear wall/Side wall:
Center panel: titanium gold mirror etched stainless steel,
side wall auxiliary panel: marble - Front wall/Car door: Titanium gold mirror stainless steel
- Flooring: Standard PVC (optional marble)
FJ-JXA02 Passenger Elevator
- Ceiling: Titanium gold stainless steel, acrylic top panel
- Rear wall/Side wall:
Center panel: glass mirror,
rear wall auxiliary panel: Etched stainless steel mirror plated with antique bronze color - Front wall/Car door: Antique bronze mirror stainless steel
- Flooring: Standard PVC (optional marble)
FJ-JXA07 Passenger Elevator
- Ceiling: Stainless steel mirror frame, acrylic top panel
- Rear wall/Side wall: Center panel: 304 hairline stainless steel, auxiliary panel: etched 304 stainless steel mirror
- Front wall/Car door header: 304 mirror stainless steel
- Handrail: Stainless steel flat handrail
- Flooring: Standard PVC (optional marble)
FJ-JXA18 Passenger Elevator
- Ceiling: White acrylic, stainless steel metal wire frame
- Rear wall: Center panel: art glass, acrylic molding lights on both sides
- Side wall: Paint-free panel, hidden light strip
- Flooring: Standard PVC (optional marble)
FJ-JXA19 Passenger Elevator
- Ceiling: Four-sided LED, antique bronze hairline stainless steel, downlights
- Car side walls: Antique bronze hairline stainless steel
- Car rear wall: Decorative picture frame, concealed LED light strip
- Flooring: Standard PVC (optional marble)
FJ-JXA20 Passenger Elevator
- Ceiling: White decorative lights
- Car real wall: white mother-of-pearl decorative lights on the center
- Car side walls: paint-free side panel mirror
- Handrail: Wood/ titanium gold stainless steel
- Flooring: Standard PVC (optional marble)
FJ-JXA85 Passenger Elevator
- Ceiling: Titanium gold mirror stainless steel, acrylic light
- Rear wall/Side wall:
Center panel: titanium gold etched stainless steel mirror,
rear wall auxiliary panel: titanium gold hairline stainless steel - Side wall auxiliary panel/Front wall: titanium gold hairline stainless steel
- Flooring: Standard PVC (optional marble)
| Persons | Rated capacity (kg) | Rated speed (m/s) | Car size (mm) | Door size (mm) 2P Central opening | Shaft size (mm) | Machine room size(mm) | |||
| C.W×C.D×D.H | D.W×D.H | H.WxH.D | HR.H | Pit | MR.WxMR.D | MR.H | |||
| 6 | 450 | 1.0 | 1400x850x2300 | 800x2100 | 2000x1500 | 4000 | 1500 | 2000x1500 | 2500 |
| 1.5/1.75 | 4400 | ||||||||
| 8 | 630 | 1 | 1400x1100x2300 | 800x2100 | 2000x1720 | 4200 | 1500 | 2000x1720 | 2500 |
| 1.5/1.75 | 4400 | 1600 | |||||||
| 10 | 800 | 1 | 1400x1350x2300 | 800x2100 | 2000x1970 | 4200 | 1500 | 2000x1970 | 2500 |
| 1.5/1.75 | 4400 | 1600 | |||||||
| 2 | 4800 | 1800 | |||||||
| 2.5 | 2000 | ||||||||
| 13 | 1000 | 1 | 1600x1450x2300 1100x2100x2300 Stretcher elevator | 900x2100 | 2200x2120 2100x2500 Stretcher elevator | 4200 | 1500 | 2200x2120 2100x2500 Stretcher elevator | 2500 |
| 1.5/1.75 | 4400 | 1600 | |||||||
| 2 | 4800 | 1800 | |||||||
| 2.5 | 2000 | ||||||||
| 3 | 5200 | 2600 | |||||||
| 3.5 | 5500 | 3100 | |||||||
| 4 | 6000 | 3850 | |||||||
| 16 | 1250 | 1 | 1900x1450x2300 | 1100x2100 | 2500x2150 | 4200 | 1500 | 2500x2150 | 2500 |
| 1.5/1.75 | 4400 | 1600 | |||||||
| 2 | 4800 | 1800 | |||||||
| 2.5 | 2000 | ||||||||
| 3 | 5200 | 2600 | |||||||
| 3.5 | 5500 | 3100 | |||||||
| 4 | 6000 | 3850 | |||||||
| 18 | 1350 | 1 | 1900x1550x2300 | 1100x210 | 2500x2250 | 4200 | 1500 | 2500x2250 | 2500 |
| 1.5/1.75 | 4500 | 1600 | |||||||
| 2 | 4800 | 1800 | |||||||
| 2.5 | 2000 | ||||||||
| 3 | 5200 | 2600 | |||||||
| 3.5 | 5500 | 3100 | |||||||
| 4 | 6000 | 3850 | |||||||
| 21 | 1600 | 1 | 1900x1800x2300 | 1100x2100 | 2500x2500 | 4200 | 1500 | 2500x2500 | 2500 |
| 1.5/1.75 | 4500 | 1600 | |||||||
| 2 | 4800 | 1800 | |||||||
| 2.5 | 2000 | ||||||||
| 3 | 5200 | 2600 | |||||||
| 3.5 | 5500 | 3100 | |||||||
| 4 | 1900x1800x2800 | 6000 | 3850 | 3200 | |||||
| 6 | 1100x210 | 2700x2500 | 6350 | 4300 | 2700x2500 | ||||
| 10 | 1900x1800x2800 | 2700x2950 | 8800 | 7200 | 4200x2950 | 3800 | |||
| 26 | 2000 | 1 | 1900x2200x2300 | 1100x2100 | 2700x2700 | 4500 | 1500 | 2700x2700 | 2500 |
| 1.5/1.75 | 4700 | 1600 | |||||||
| 2 | 5000 | 1800 | |||||||
| 4 | 1900x2200x2800 | 2700x3350 | 6000 | 3850 | 4200x3350 | 3800 | |||
| 6 | 6400 | 4300 | |||||||
| 8 | 7500 | 4301 | |||||||
| 10 | 8800 | ||||||||
Signal system, Ceiling series, Landing door series, We have different styles for you to choose
What are the components of the elevator system?
Generally, the elevator system includes the elevator machine room, elevator shaft, elevator car, elevator guide rails, elevator door system, elevator control system, safety systems, and other components.
Where can passenger elevators be installed?
FUJI can provide commercial building passenger elevator, industrial elevators & lifts,, public buildings passenger elevator, which can be installed in large retail stores, leisure centers, gyms, medical environments, shopping malls, and other locations.
How much weight can a passenger elevator hold?
Passenger elevators manufactured by ordinary elevator companies generally have a load capacity ranging from 260KG to 1600KG. With over thirty years of experience in the elevator industry, our bespoke passenger lifts can support a load capacity of up to 3000KG.
How is the reliability of the elevator system ensured?
With over thirty years of experience in the elevator industry and being one of the first elevator manufacturers in China, FUJI utilizes intelligent control systems, digital frequency conversion technology, permanent magnet synchronous motor technology, high-precision positioning control systems, and other advanced technologies to ensure the safety of the elevator system.
What is the difference between a freight elevator and a passenger elevator?
Freight elevators are designed for transporting goods and materials within buildings, and compared to passenger elevators, they operate at slower speeds. Passenger elevators offer faster speeds and greater comfort.
