Wheel-Tracker

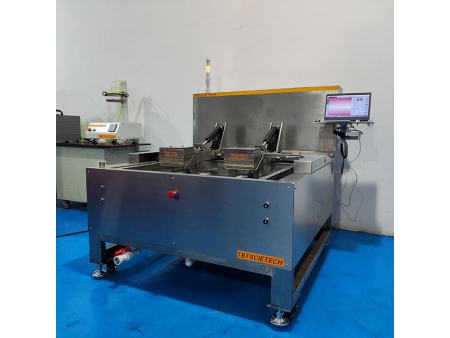

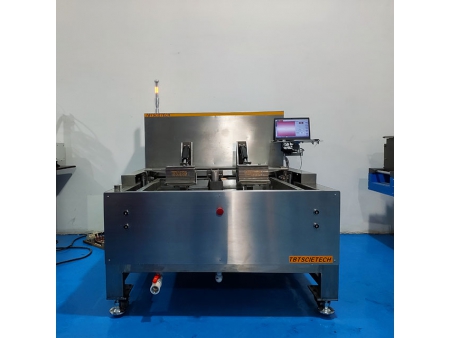

TBTACZ-HWT Hamburg wheel tracker is designed to evaluate the rutting resistance and moisture susceptibility of hot mix asphalt (HMA). The asphalt testing equipment measures permanent deformation under repeated moving load by recording rut depth and number of load cycles to failure. Test results can identify insufficient binder strength, weak aggregate structure, or moisture-induced damage. Specimens can be immersed in water at controlled temperature throughout the test to assess water sensitivity.
Standard: AASHTO T324
- Computer-controlled operation
- High-precision displacement sensor with accuracy ±0.01mm
- Fully automatic temperature control, wheel movement and data recording
- High-stability temperature sensor with wide control range
- PID temperature control with PWM modulation to prevent overshoot
- Linear compensation of temperature and displacement sensors across full scale
| Displacement range | 0~30mm |
| Displacement accuracy | ±0.01mm |
| Temperature range | Ambient temperature to 70°C |
| Test wheel | Ø203.2mm×47mm |
| Test speed | 15-55 cycles/min |
| Walking distance | 230±10mm |
| Test time | 0-480 min |
| Test times | 0~30000 cycles |
| Specimen size | 400×300×50mm Cylindrical mould as per standard |
| Working method | Water immersion |
| Machine power | 8kW |
| Data output | Sample Inflection Point (SIP); Creep slope; Stripping slope; Rut depth profile; Temperature; Export to Microsoft Excel |
| Software Compatibility | Windows XP, Vista, 7, 8 and 10 |
| Weight | 500kg |
| Dimensions | 1400×1600×1400 mm |
| Temperature measurement channels | 2 |
| Power supply | 380V, 50Hz |
TBTACZ-1 wheel tracker is designed to evaluate the anti-rutting ability of asphalt mixture at high temperature and help with the ratio design of asphalt mixture.
| Wheel walking speed | 42±1times/min (one way) |
| Wheel walking distance | 230±10mm |
| Wheel rubber hardness (international standard hardness) | 78±2 (60℃) |
| Ground pressure with test specimen | 0.7 ± 0.05MPa |
| Specimen size | 300x300x50mm |
| Displacement measurement range | 0~30mm |
| Displacement measurement accuracy | less than 0.01 mm |
| Wheel-track test time | 20~300 min (adjustable) |
| Temperature range for control box (can be set) | Room temperature~80 ℃ (control accuracy: ± 0.3℃) |
| Power | 380V, 50Hz, 3kW (need working neutral wire) |
TBTACZ-5 wheel tracker is intended for evaluating the anti-rutting ability of asphalt mixture at high temperature and helping with the ratio design of asphalt mixture.
| Working mode | Water immersion test and non-immersion test |
| Temperature measurement accuracy | ±0.1°C |
| Ambient temperature control accuracy | ±1°C |
| Number of temperature measurement channels | 2 |
| Displacement measurement accuracy | ±0.01mm |
| Displacement measurement range | 0~30mm |
| Temperature setting range | 40°C~80°C |
It is mainly used for the determination of the high temperature anti-rutting ability of the asphalt mixture, and can also be used for the auxiliary inspection of the asphalt mixture ratio design.
It provides a lot of real and effective data for the domestic industry standard of the instrument prepared by the Ministry of Communications. Our institute is the main unit of the People's Republic of China Transportation Industry Standard (JT\T670-2006) rutting test machine.
| Displacement detection range | 0 ~ 30 mm. |
| Deformation detection accuracy | ±0.05 mm, resolution 0.001 mm. |
| Temperature control range | 40 ~ 80 °C (arbitrarily adjustable). |
| Temperature control accuracy | ± 1 ° C, resolution 0.1 °C. |
| Test piece height | 300 mm × 300 mm × (50-100) mm. |
| Rubber hardness of test wheel (international standard hardness) | 78±2 (60°C) |
| Test wheel grounding pressure | 0.7MPa±0.05MPa. |
| trolley walking speed | 42 times / min ± 1 time / min. |
| trolley walking distance | 230±10 mm |
| rutting test time | 20---600 min (arbitrarily adjustable) |
