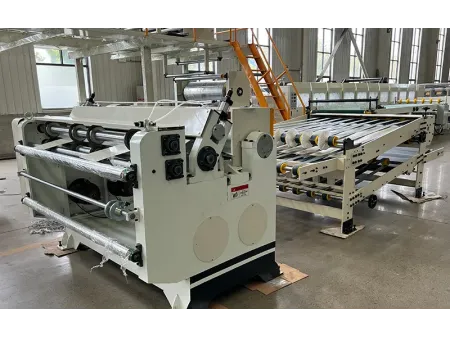

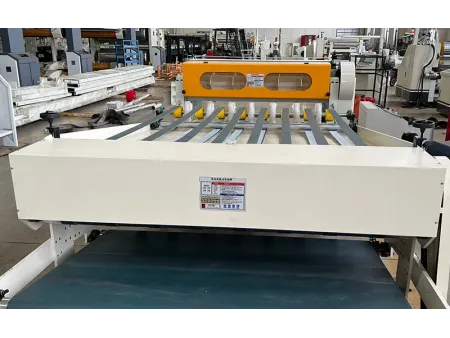

NC Sheet Cutter Machine
Request a Quote
Individual Machines for Corrugated Board Manufacturing
Automatic corrugated sheet cutting machine for multi-size corrugated board production
NC sheet cutter machine is an automated board-cutting machine featuring customizable width, optional stacking function, and variable-frequency control. It is suitable for various production specifications and speeds. A stacking unit can be added as needed.
- Cutting length: 200-9000 mm
- Cutting accuracy: ±1.5 mm
- Stacking length: 300-1400 mm
Features
- The feeding system uses a combination of an upper glue-roller shaft and a lower paper-roll shaft to prevent feeding slip and improve board flatness.
- The cross-cutting knife adopts a lightweight dynamically balanced knife shaft, ensuring smooth operation and reduced vibration.
- The main machine side panels are made of high-strength gray cast iron, providing vibration resistance and structural stability.
- Equipped with a variable-frequency controller for precise speed adjustment to meet different production requirements.
Technical Specifications
| Max. cut width, mm | 1000-2200 |
| Cut length range, mm | 200-9999 (standard) / 300-1400 (with stacker) |
| Cutting thickness, mm | 2 |
| Power, kW | 11 |
| Working speed, m/min | 0-80 |
| Machine dimensions (LxWxH), mm | 5600x1500x2000 |
| Accuracy, mm | ±1.5 |
