WFI Storage Tank

Stainless steel WFI tanks are a proven solution for storing ultra-pure sterile water for injection in pharmaceutical manufacturing. Our WFI storage tanks are available in vertical and horizontal configurations, with options for single-layer or double-layer construction. Designed with heating and insulation capabilities, these pharmaceutical storage tanks feature a spiral jacket in the intermediate layer for steam heating or chilled water cooling. The insulation layer is made of high-quality glass fiber felt for superior thermal performance.

We offer customized design and manufacturing of WFI storage tanks to meet the specific requirements of pharmaceutical production.

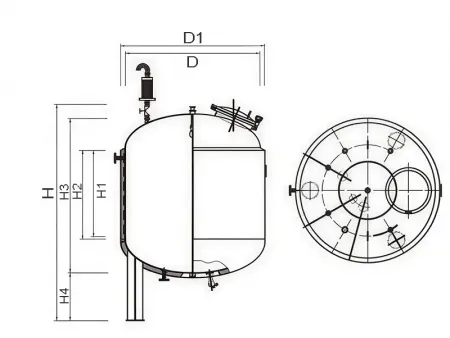

Specifications of Vertical WFI Storage Tank

Model	Volume (L)	Dimensions (mm)
Model	Volume (L)	D	D1	H	H1	H2	H3	H4
CHL300	300	800	900	1484	460	461	820	400
CHL500	500	900	1000	1587	530	530	928	400
CHL1000	1000	1100	1200	1878	750	750	1356	400
CHL2000	2000	1300	1400	2463	1220	1220	1926	400
CHL3000	3000	1600	1700	2395	1220	1100	2070	400
CHL4000	4000	1800	1900	2557	1220	1220	2220	400
CHL5000	5000	1900	2000	2637	1220	1220	2220	400
CHL6000	6000	2000	2100	2806	1380	1380	2206	400
CHL8000	8000	2200	2300	3226	1500	1500	2680	400
CHL10000	10000	2400	2500	3450	1580	1780	2780	400

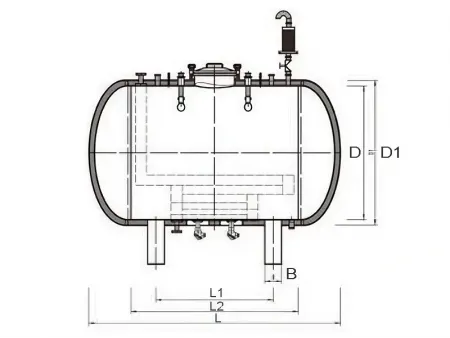

Specifications of Horizontal WFI Storage Tank

Model	Volume (L)	Dimensions (mm)
Model	Volume (L)	D	D1	L	L1	L2	B
CHW1000	1000	1000	1100	1696	730	1050	150
CHW2000	2000	1200	1300	2267	1050	1500	150
CHW3000	3000	1300	1400	2746	1300	1950	150
CHW4000	4000	1500	1600	2796	1300	1900	200
CHW5000	5000	1600	1700	3002	1400	2050	200
CHW6000	6000	1700	1800	3202	1450	2200	200
CHW8000	8000	1900	2000	3444	1650	2350	250
CHW10000	10000	1900	2000	4144	2050	3000	250
CHW15000	15000	2100	2200	4910	2500	3800	300
CHW20000	20000	2300	2400	5492	2800	4200	300

FAQs

Yes, we can design and manufacture customized WFI storage tanks according to your requirements. The tanks feature a sanitary, pharmaceutical-grade design and can be equipped with Clean-in-Place (CIP) and Steam-in-Place (SIP) capabilities. They fully comply with GMP standards and are suitable for medical industry applications.

Absolutely. Our WFI tanks can be customized to meet unique material and insulation specifications. The tanks use a sanitary, pharmaceutical-grade design and can be equipped with insulation made from non-asbestos and chlorine-free materials. The outer insulation layer is clad with SS304 stainless steel, making it suitable for food industry applications.

Yes. We can custom-build storage tanks with coil jackets, half-pipe jackets, or full jackets to enable effective temperature exchange inside the vessel. The tanks can also be insulated and designed with CIP and SIP functionality. With a sanitary, pharmaceutical-grade design, these tanks meet GMP requirements for pharmaceutical production environments.

We design customized purified water storage tanks with CIP and SIP functionality that comply with GMP standards. The tanks can include various instrument fittings such as spray balls, diaphragm pressure gauges (pressure sensors), temperature sensors, and level sensors, ensuring compatibility with electronic manufacturing requirements.
