Water-Cooled Scroll Chiller

Request a Quote

Website: http://industrialchiller-en.com/1-2-water-cooled-scroll-chiller.html

Packaged water-cooled chiller with scroll compressor

Cooling capacity: 3 ton to 120 ton
Refrigerant: R22/R407C/R410A (for standard applications)
Power source: 380V 50Hz 3Ph
Compressor brand: Panasonic, Danfoss, Bitzer, Copeland, Invotech
Chilled water temperature range: 5°C to 35°C (adjustable temperature)
Temperature control accuracy: ±1°C to 2°C
Min. dimensions (L×W×H): 1190×597×1240mm

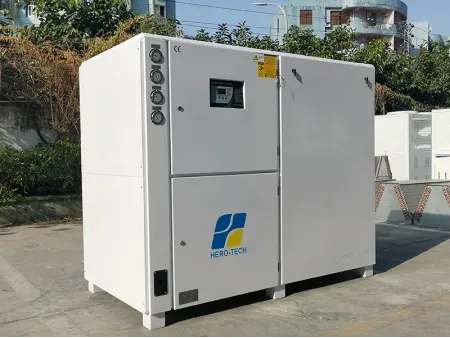

HTI-30WD Water-Cooled Scroll Chiller

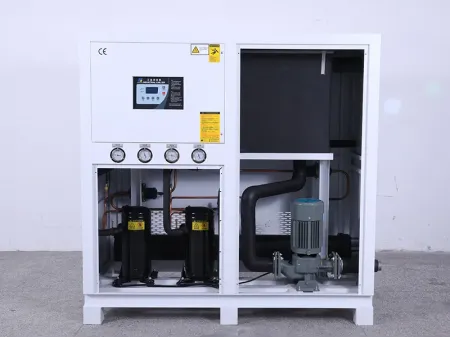

HTI-8-10-12WD Water-Cooled Scroll Chiller

HTI-3-5-6W Water-Cooled Scroll Chiller

Features

The microcomputer controller is combined with branded electrical components to achieve precise temperature regulation and support automatic fault diagnosis to ensure stable and reliable operation of the unit.
Multiple protection functions are provided, including high and low pressure protection, compressor overload protection, cooling water pump and chilled water pump overload protection, phase sequence monitoring, water flow or water level detection, high water temperature alarm, anti-freeze protection, etc.
Liquid cooling improves overall efficiency while keeping operating noise below 75 dB, providing a quieter, more environmentally friendly solution.

Optional

High-pressure water pump, stainless steel water pump
R134A, R513A or other refrigerants
RS-485 communication interface
Corrosion-resistant water circuit
Explosion-proof chiller unit

Typical Applications

In plastics processing, water-cooled scroll chillers cool molds during injection molding, extrusion, and blow molding, helping to reduce deformation, improve surface quality, and maintain high production efficiency.
Chemical and pharmaceutical operations use scroll chillers for precise temperature control in reaction vessels, stable cooling during drug synthesis, and steady fermentation tank conditions that keep processes consistent and product quality reliable.
In food production, they handle rapid cooling after sterilization, manage temperatures for dairy pasteurization and beer fermentation, and provide pre-cooling in cold storage environments.
For metalworking and machinery, water-cooled scroll chillers lower the temperature of cutting fluids, welding units, and machine tool hydraulic systems, minimizing thermal distortion and extending tool life.
Electronics and electroplating benefit from consistent cooling for semiconductor manufacturing equipment and plating baths, ensuring stable performance of components and a high-quality finish on coatings.
In hospitals and laboratories, chillers help maintain the temperature under control in operating rooms, medical imaging systems such as MRI scanners are properly cooled, and precision instruments in labs operate under stable conditions.

Technical Specifications

Model (HTI-***)				3W	5W	6W	8WD	10WD	12WD	15WD	20WD	25WD	30WD	40WF	50WF	60WF
Nominal cooling capacity		7℃	kcal/h	7834	11704	14783	20106	23684	29566	35991	51170	59512	75164	102340	119110	144514
			kW	9.11	13.61	17.19	23.38	27.54	34.38	41.85	59.5	69.2	87.4	119	138.5	168.04
		12℃	kcal/h	9468	14095	18206	23753	28190	36412	43163	60716	70864	86172	121260	141900	172447
			kW	11.01	16.39	21,17	27.62	32.78	42.34	50.19	70.6	82.4	100.2	141	165	200.52
Input power			kW	2.61	3.82	4.38	5.85	7.54	8.66	10.02	14.75	16.78	23.26	29.3	33.36	44.52
Power source				3Ph 380V~415V 50Hz/60Hz
Refrigerant	Type			R22/R407C/R410A
	Control			Capillary tube					Thermostatic expansion valve
Compressor	Type			Hermetic scroll compressor
	Power		kW	2.24	3.27	3.83	2.65×2	3.27×2	3.83×2	4.36×2	6.57×2	7.59×2	9.84×2	6.57×4	7,59×4	9.84×4
Condenser	Type			Shell and tube condenser
	Cooling water volume		m³/h	1.67	2.93	3.16	4.98	5.85	7.24	9.37	13.3	15.5	18.58	24.7	30.9	37.14
	Pipe connection		kW	1	1	1	1-1/2	2	2	2	2	2	3	3	3	3
Evaporator	Type			SS tank with SS coil/ shell and tube evaporator
	Chilled water volume (7℃)		m³/h	1.55	2.58	3.09	4.13	5.2	6.2	7.74	10.3	12.9	15.8	20.6	25.7	30.9
	Tank volume		liter	60	60	90	150	200	200	330	330	350	450	580	620	620
	Pipe connection		inch	1	1	1	1-1/2	2	2	2	2	2	3	3	3	3
Pump	Power		kW	0.37	0.55	0.55	0.55	1.0	1.0	1.3	1.6	1.6	3.0	3.0	3.0	4
	Head		m	20	20	20	20	20	20	20	20	20	20	20	20	20
Safety devices				Compressor internal protection Overcurrent protection High/low pressure protection Over temperature protection Flow rate protection Phase sequence/phase missing protection Low level coolant protection Anti-freezing protection Exhaust overheat protection
Dimensions	Length		mm	1190	1190	1190	1330	1330	1330	1810	1810	1810	1940	2510	2510	2775
	Width		mm	597	597	597	770	770	770	990	990	990	950	1190	1190	1220
	Height		mm	1240	1250	1250	1480	1480	1480	1650	1650	1650	1750	1900	1900	2130
Net weight			kg	125	160	180	230	260	330	420	460	680	720	870	980	1120

The data above is calculated under the following design conditions:

Chilled water inlet/outlet temperature: 12 °C / 7 °C
Cooling water inlet/outlet temperature: 30 °C / 35 °C

Note: Cooling capacity of the R407C unit is approx. 5% lower than that of the R22 unit.
Optional refrigerants: R407C/R410A /R134A
We reserve the right to modify specifications without further notice.
