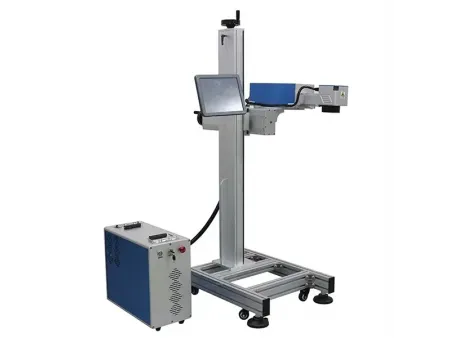

UV Fly Laser Marking Machine
- Laser source : 3 / 5 / 10W
- Wavelength : 355nm
- Power Stability(8h) : <±1%rms
- Repeated Accuracy : ±0.003mm
The online flying UV laser marking machine is centered on 355nm UV cold processing technology, combined with a high-speed galvo scanner system up to ≤8000mm/s, achieving a revolutionary breakthrough in dynamic production line marking. The equipment supports real-time editing of dynamic serial numbers, invisible QR codes, and complex graphics, and offers seamless integration with PLC systems. Featuring an industrial-grade touch screen and a user-friendly interface, it can complete batch marking of over 100,000 products per day. Its water-cooling system and modular structure adapt to demanding production environments, reducing maintenance costs by 70% compared to traditional inkjet coding technology. It supports 24-hour continuous operation, significantly lowering deployment costs.
UV laser marking machines leverage cold processing, high precision, and multi-material adaptability as core competencies, excelling particularly in handling heat-sensitive, highly reflective, or materials requiring ultra-fine processing. They can achieve sub-micron level non-thermal damage engraving on surfaces including metal coatings, polymers: (e.g., ABS, PVC, HDPE, and other plastics), glass, ceramics and more.
| Power | 3W 5W 10W |
| Wavelength | 355nm |
| Beam Quality | M2< 1.3 |
| Output Power | 10%-100%(continuously to be adjusted) |
| Output Frequency | 20KHz-100KHz(continuously to be adjusted) |
| Power Stability(8h) | < ±1%rms |
| Focus Spot Diameter | < 0.01mm |
| Engraving Speed | 800 standard characters/second |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.1mm |
| Repeated Accuracy | ±0.003mm |
| Cooling Mode | Water Cooling / Air Cooling |
| Environment Temperature | 10ºC~35ºC |
| Environment Humidity | 20%-80% |
| Power Requirement | 220V/50Hz/ or 110/60Hz |
| Life of Laser Module | 25,000-40,000Hrz |
Laser source
We provide renowned domestic and international brand laser sources for our equipment, such as DXT, GL, and Optowave. These sources offer high pump conversion efficiency, low power consumption, and excellent beam quality, utilizing third-order intracavity frequency doubling technology, resulting in higher photon energy. This allows for direct breaking of material molecular chains rather than heating, achieving a "photo-etching" effect with a minimal heat-affected zone (<1μm), thereby preventing material deformation or scorching.
Galvo scanner
Features a high scanning speed of 7000mm/s, high stability, and is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.
F-theta lens
Equipped with a 355nm wavelength F-theta lens, primarily used for UV laser marking machines. Due to its shorter wavelength, it is suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.
Control card
Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.
- UV laser
- Online flying laser control cabinet
- Work panel
- Galvo scanner
- F-theta lens
- Control card
- Laser power supply
- Touch screen
- Power cord
- Water chiller
- Safety goggles
- Foot pedal switch
- Aluminum test piece
- Hex key tool set
- Equipment warranty certificate
- Shipping accessories list
- Product catalog
