Automatic Book Cover Case Making Machine
Hardcover making machine, book case maker

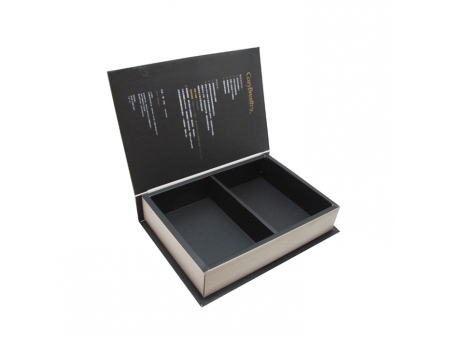

The QFM-460/600 automatic book cover case making machine can be used for making various types of book cover, file folder, game paper, calendar, diary and upscale gift box. It features high quality, efficiency, speed and stability. Compared with semi automatic equipment, it can not only save labor and energy, but also meet various demands.
The book cover case making machine uses push back paper feeding system, which adopts servo and pneumatic control. Positioning error can be automatically corrected. Besides, with air suction device and automatic leveling device at the end, the machine can avoid air bubbles and protect paper from bending. The automatic lifting platform helps to get ordered products. Touch screen is available to make operation easier. Thanks to the Omron PLC intelligent control system, fault detection is automatic, which lowers the waste of raw material.
As the rapid development of the printing and packaging industry, competition becomes more intense. Thus, our company established a research team. After introducing the advanced technology and studying the characteristics of the like products, we gradually improve the quality. Since 2006, we have successfully met diversecustomers' demands and produced the latest digital high-tech products. The QFM460/600 book cover case making equipment is a preferred choice in the packaging industry.
| Model | QFM-460 | QFM-600 |
| Length of paper | 230-830 mm | 230-1030 mm |
| Width of paper | 140-480 mm | 160-600 mm |
| Thickness of paper | 100-200 g | 100-200 g |
| Thickness of cardboard | 1-3 mm | 1-3 mm |
| Min. width of spine | 10 mm | 10 mm |
| Speed | 25 sheets/min. | 25 sheets/min. |
| Power | 18 kW | 20 kW |
| Weight | 2500 kg | 2800 kg |
| Dimension | L7600XW2150XH1500 mm | L9400XW2600XH1500 mm |
XINWEI MACHINERY is an automatic book cover case making machine manufacturer and supplier in China. We offer a comprehensive range of products, including adjustable speed gluing machine, gift box notching machine, rigid paper box making machine, and more.
